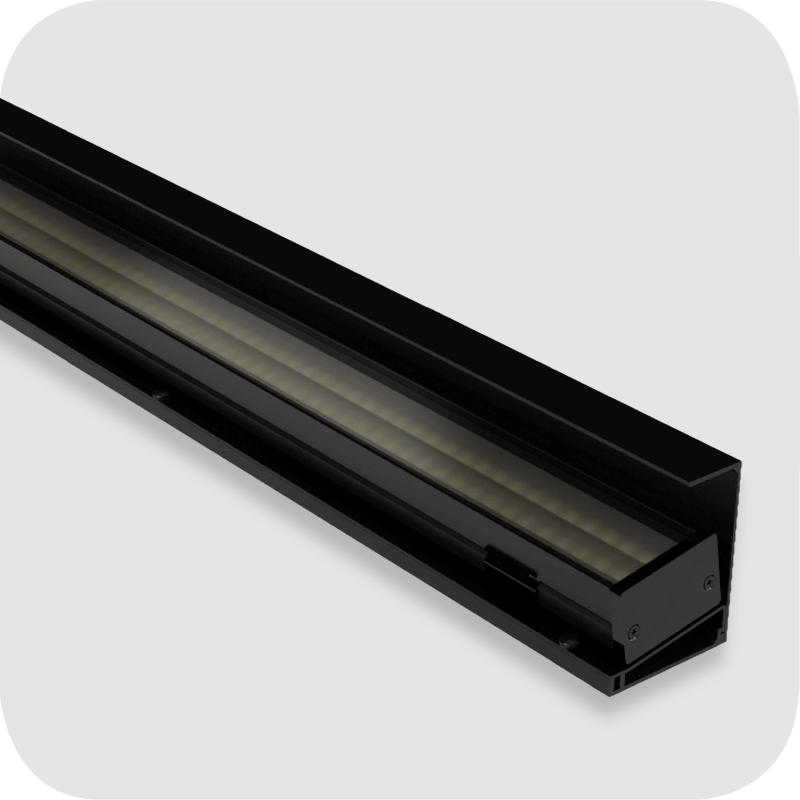

Slate-E1-S

Surface Mounted

Combining functionality with a minimalist form factor, this linear fixture seamlessly integrates into its environment. Designed with lighting designers in mind, Slate provides the flexibility to accentuate architectural details and illuminate vertical surfaces. Its high-performance Linear LED luminaires are ideal for wall washing, wall grazing, or floodlighting exterior walls and facades, delivering exceptional uniformity and precision.
Slate features a rotating adjustable bracket for precise aiming and enhanced versatility adapting effortlessly to a wide range of applications.

Specifications

  • Delivered Luminous Output: 480 lumens per foot
  • Light Distributions: Elliptical (20°x70°)
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K
  • Color Rendering Index: Ra90
  • Dimming Protocol: 0-10V / DALI / ELV / DMX
  • Color deviation: 3 MacAdam ellipses
  • 5-year limited warranty
Slate-E1-S
$standardalt$

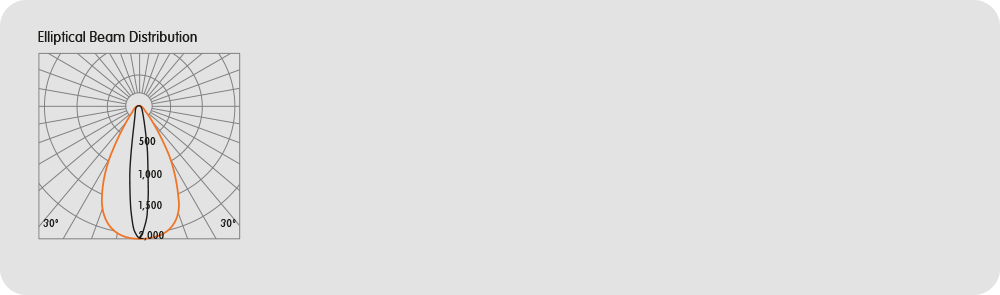

Photometric data: Type C Polar Curves
Slate-E1-S

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
