Undrop Dot

SPECTER magnetic track system offers unlimited design configurations across both the horizontal and vertical planes of a space. SPECTER’s minimal profile can extend continuously through spaces creating a sleek and visually discreet slot which blends into the environment. The magnetic properties of the system allow fixtures to be installed, moved, and removed with ease while still maintaining a secure magnetic adhesion. SPECTER track is compatible with a range of fixtures, including accents, wallwashers, general illumination, and pendants, providing specifiers with maximum design flexibility.

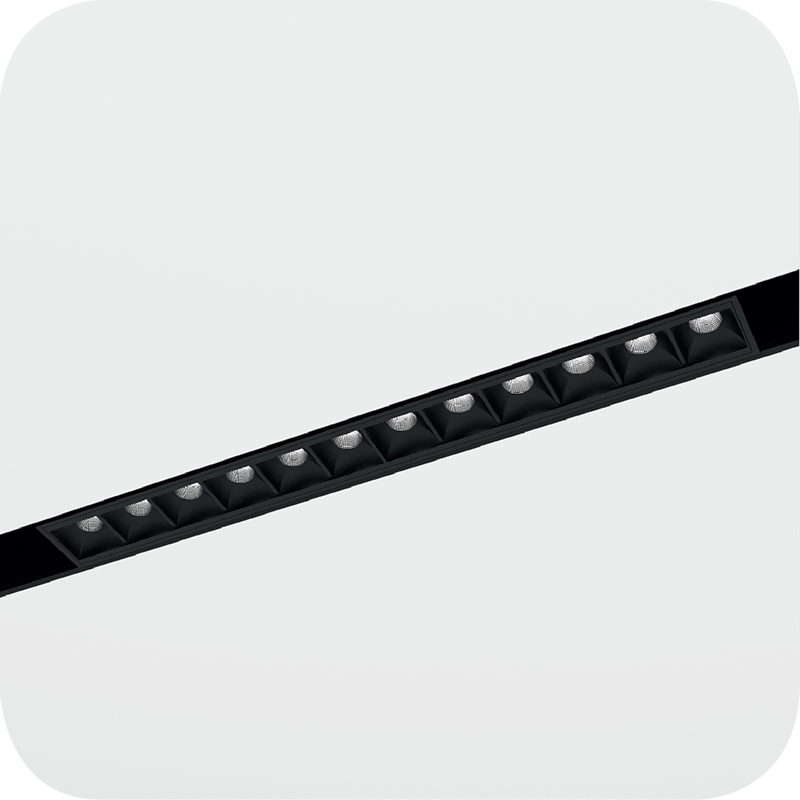

The Undrop module family offers a quietly recessed fixture, which is flush with the face of the track. Undrop is available in a wide range of standard lengths giving the designer more control over the aesthetics and performance of each configuration. Undrop is available with an Opal Lens, Low Glare Baffles, and Wallwash optics making it highly versatile. Undrop Dot modules allow lighting designers, interior designers, and architects to select specific distributions according to the needs of the space. The low glare optics provide outstanding visual comfort, making this fixture ideal for any environment requiring quiet performance lighting.

Specifications

  • Up to 3700lm delivered output
  • Standard Lengths: 3” - 6” - 12” - 24” - 36”
  • Available with Opal Lens - Low Glare Baffles - Wallwash Optics
  • Standard Optics: 12° - 24° - 36° - Wallwash - Lambertian1
  • Available Color Temperatures (CCT): 2700K – 3000K - 3500K – 4000K – 5000K
  • Standard CRI +8 and High CRI +90
  • Fixtures designed to mount in all SPECTER tracks
  • For fixture dimming refer to track driver specifications2
  • Available in 4 standard finishes: Black – White - Silver - Bronze
  • 5-year limited warranty

  • 1 Lambertian distribution only available in Opal
    2 Dimming options, 0-10V, ELV and DALI
Undrop Dot
$standardalt$

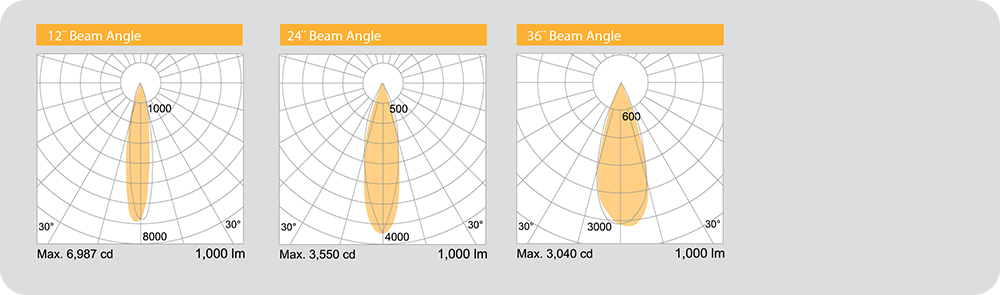

Photometric data: Type C Polar Curves
Undrop Dot

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
