Specter Track Curved

Pendant with Uplight

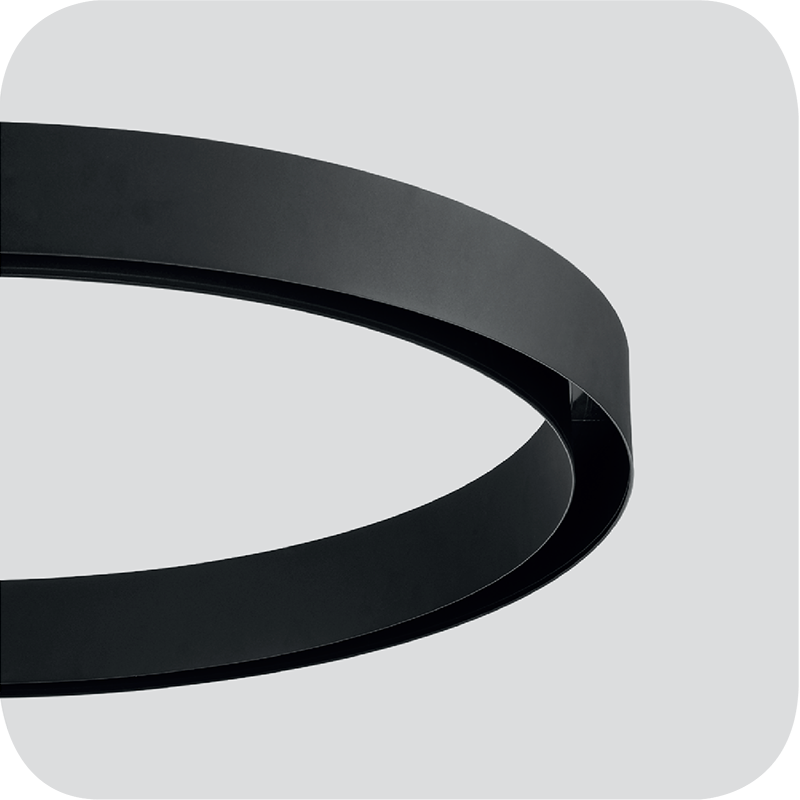

SPECTER magnetic track system offers unlimited design configurations across both the horizontal and vertical planes of a space. SPECTER’s circular track offers endless design configurations using its curved sections. The magnetic properties of the system allow fixtures to be installed, moved, and removed with ease while still maintaining a secure magnetic adhesion. SPECTER track Curved Pendant with Uplight is compatible with a range of fixtures, including accents, wallwashers, general illumination, and pendants, providing specifiers with maximum design flexibility.

Specifications

  • Magnetic connections for ease of installation
  • Track system dedicated to SPECTER fixtures range
  • Supports 2 independent 24VDC circuits

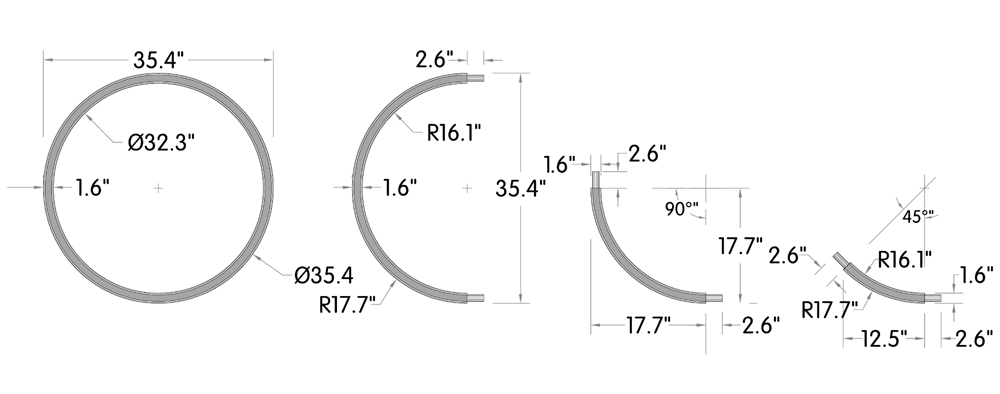

  • Available in full circle, half circle, 90° arc and 45° arc
  • Standard bend radius of 32.3”
  • Dimmable remote driver available in ELV, 0-10V, and DALI
  • Each track run can support up to 200W on one feed
  • Track system is configured and lengths made-to-order per each project’s specifications

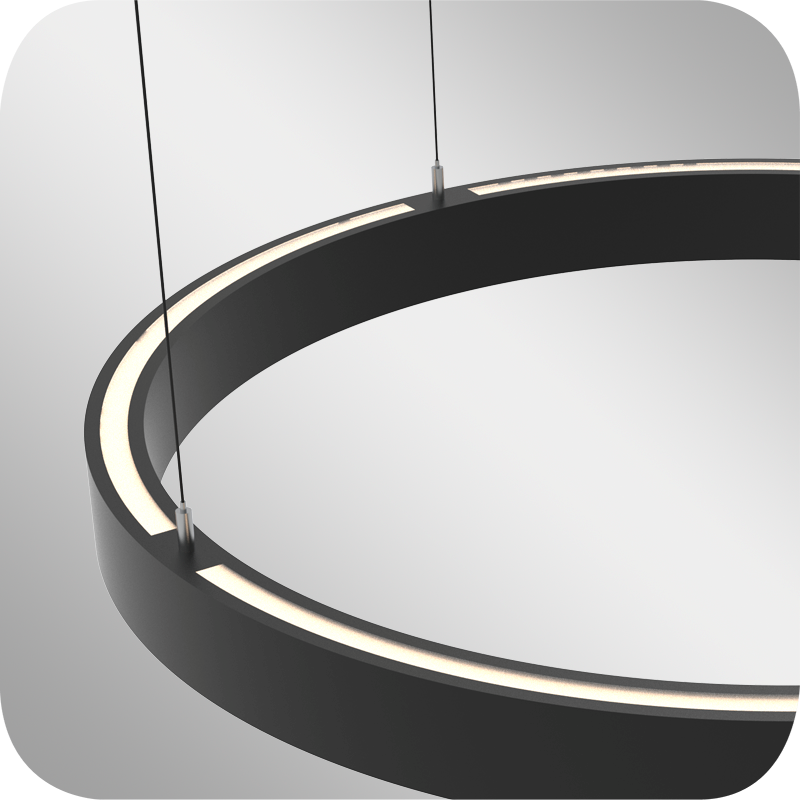

  • Optional indirect uplight available for pendant, up to 500lm/ft
  • Standard Finishes: Black – White – Silver - Bronze
  • 5-year warranty
Specter Track Curved
$standardalt$

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
