3" Round Fixed

Recessed with Trim | Trimless | Millwork

Spec-grade performance LED downlights. Optimal performance and aesthetics for hospitality, high-end residential, and corporate projects.
The Chameleon R3 fixed downlight is part of a complete family of 3” fixtures, offering a wide range of mounting options, light distributions, color temperatures, reflector finishes, and optical accessories.

Specifications

  • True 3” overall diameter
  • Accommodates ceiling thicknesses up to 3”

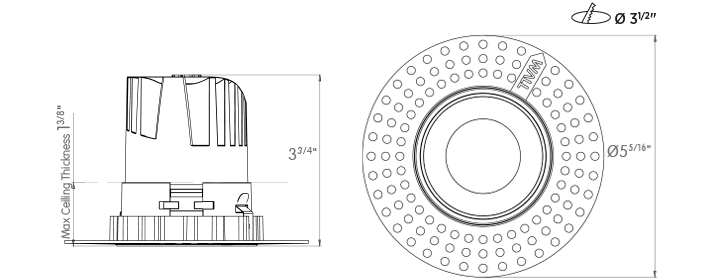

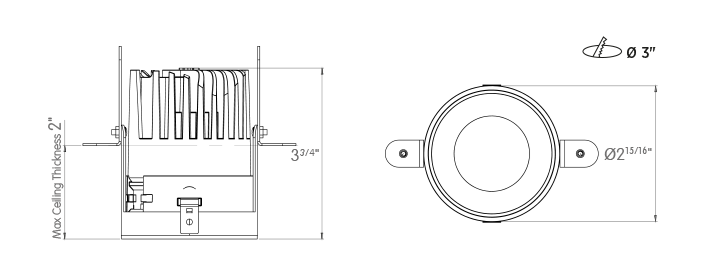

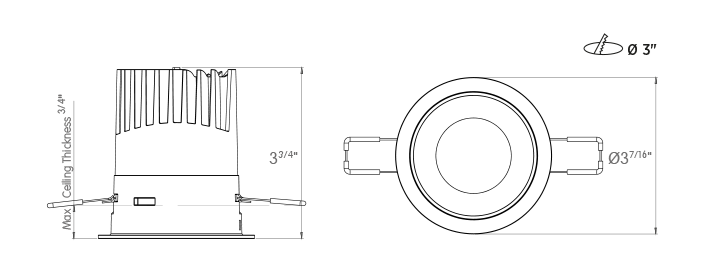

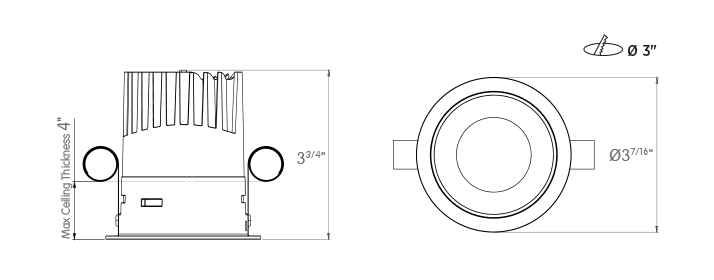

  • Mounting:  Trim - Trimless - Millwork
  • Delivered Lumens:
    • Standard Output: 950 lumens
    • High Output: 1300 lumens
    • Custom Output: 300 – 1300 lumens (100 lumen increments)
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K  – 4000K – Dim to Warm (3000K – 1800K) – Tunable White (2700K – 5000K) *Custom CCT ranges available upon request
  • Standard CRI +80 and High CRI +90  *Ultra High CRI +95 available upon request)
  • Light Distributions: Spot 12° - Medium 24° - Flood 36°
  • Dimming Protocols:  0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
  • Available in Wet location
  • Emergency options available
  • Accommodates up to 3 beam shaping and optical accessories
  • Wide range of trim and reflector finishes
  • Title 24 Compliant
  • 5-year limited warranty
3
3 3 3 3
$standardalt$

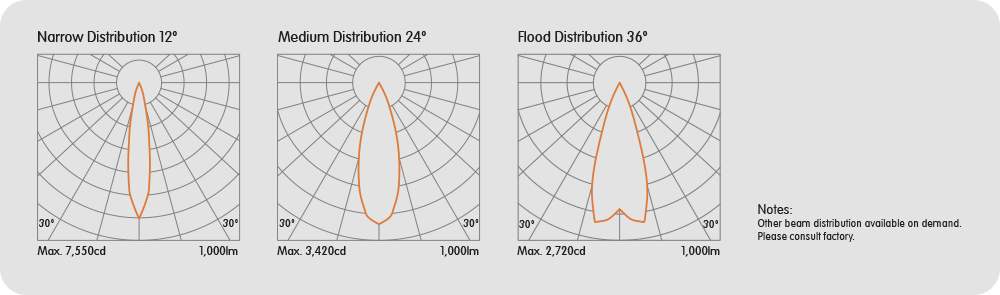

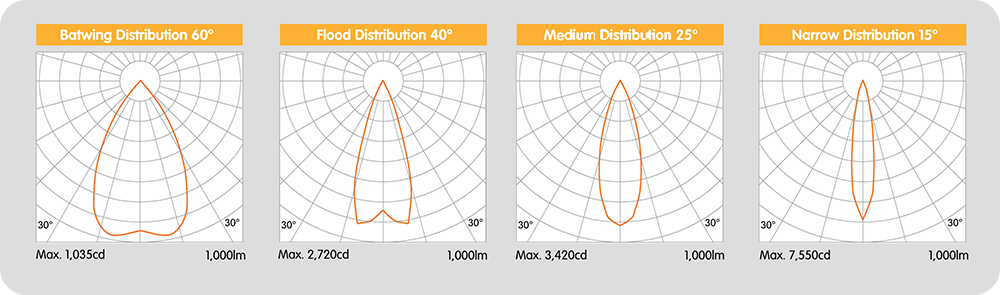

Photometric data: Type C Polar Curves
3
