3" Round Adjustable
Recessed with Trim | Trimless | Millwork
Spec-grade performance LED downlights. Optimal performance and aesthetics for hospitality, high-end residential, and corporate projects.

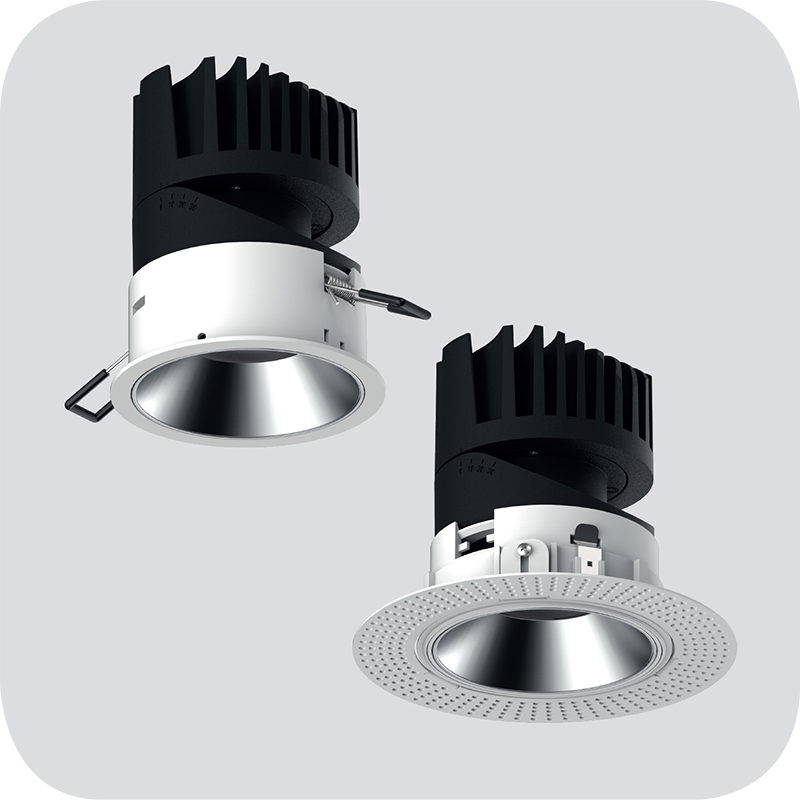

The Chameleon R3 Adjustable Downlight is part of a complete family of 3” fixtures, offering a wide range of mounting options, light distributions, color temperatures, reflector finishes, and optical accessories.
- True 3” overall diameter
- Accommodates ceiling thicknesses up to 1 ½” without beam clipping.
- Adjustable gear driven tilt from 0° to 30° with lockable rotation up to 720°

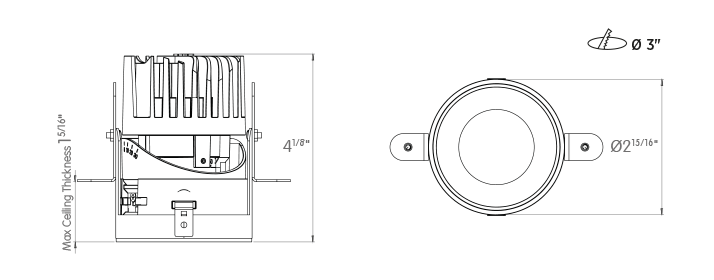

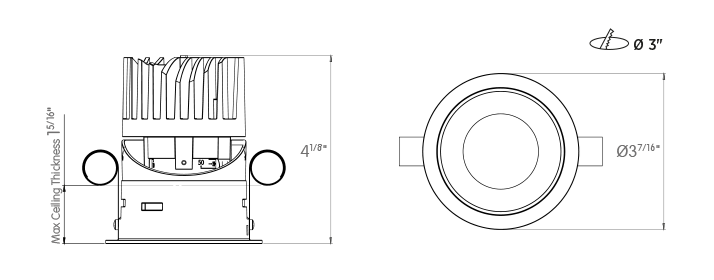

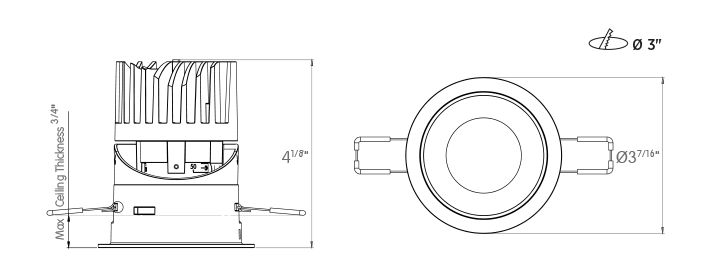

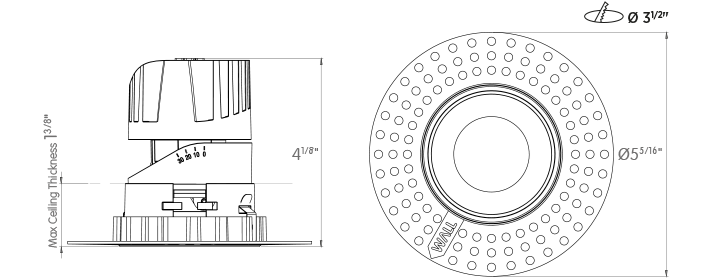

- Mounting: Trim - Trimless - Millwork
- Delivered Lumens:
- Standard Output: 950 lumens
- High Output: 1300 lumens
- Custom Output: 300 – 1300 lumens (100 lumen increments)
- Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K) –Tunable White (2700K – 5000K) *Custom CCT ranges available upon request
- Standard CRI +80 and High CRI +90 *Ultra High CRI +95 available upon request
- Light Distributions: Narrow 15° - Medium 25° - Flood 40° - Batwing 60°
- Dimming Protocols: 0-10v (1%) - 0-10v (Fade to Black) – ELV – DALI - Lutron Ecosystem
- Available in Wet location
- Emergency options available
- Accommodates up to 3 beam shaping and optical accessories
- Wide range of trim and reflector finishes
- Title 24 Compliant
- 5-year limited warranty
Photometric data: Type C Polar Curves
