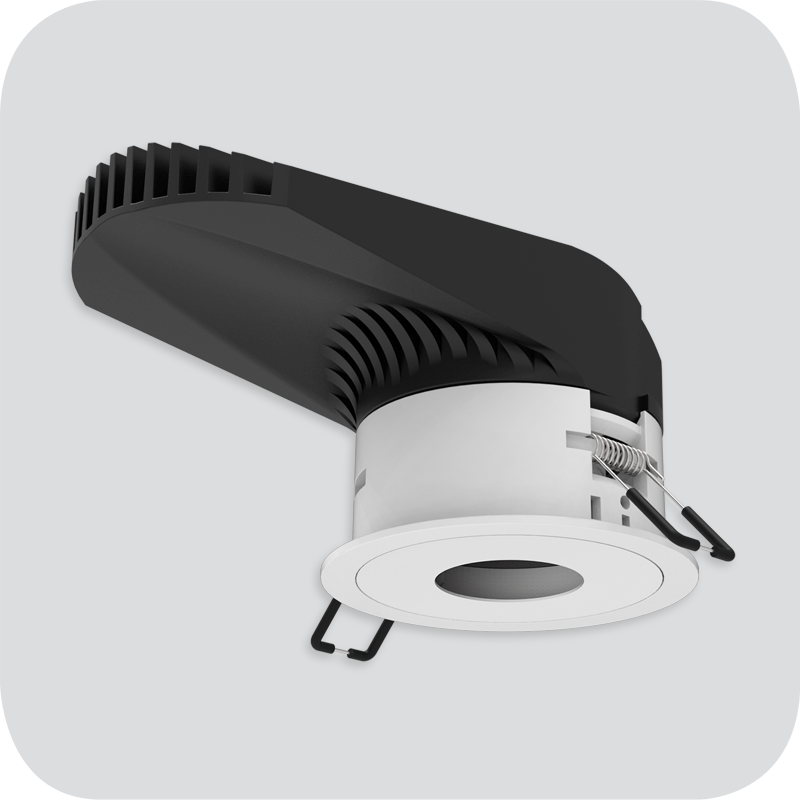

3" Pinhole Round Shallow Fixed-C3-R-H

Recessed with Trim

Spec-grade performance LED downlights. Optimal for hospitality, commercial, high-end residential, and corporate projects.
The Chameleon 3" Pinhole Round Shallow Fixed Downlight Recessed with Trim, offer a high output, precise optics, a wide range of mounting options, reflector finishes, and optical accessories.
Our Downlights family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • True 3” overall diameter
  • Up to 1000lm delivered output
  • Trim mounting option
  • High CRI, up to +97 CRI, available upon request
  • Dim-to-Warm capability 3000K to 1800K
  • Tunable White capability 2700K to 5000K
  • Wide Range of optical options
  • 5-year limited warranty
  • Chicago plenum rated
3
3 3
$standardalt$

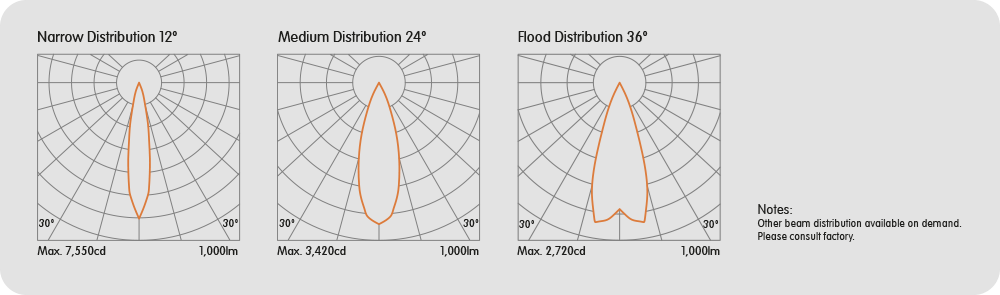

Photometric data: Type C Polar Curves
3

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
