Wallwasher

Surface Mounted

Billet, Bold's linear family of indoor and outdoor products, was created to meet exceptional performance standards, provide sleek and clean aesthetics, and to achieve ultimate flexibility. Whether for inground, ceiling, millwork, pendant, or wall-recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics, both indoor and outdoor. Our team worked meticulously to unify the baffle design of the entire Billet family into a homogenous form which would reflect the unity and harmony this system provides.

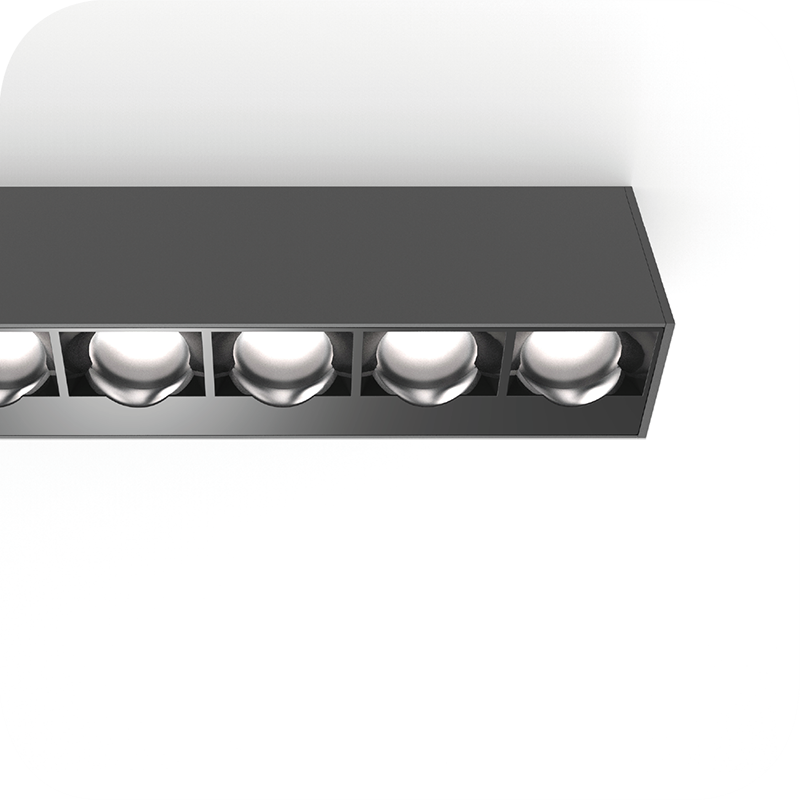

Billet's Linear Wallwasher delivers bold vertical illumination with minimal glare, thanks to its precisely designed baffle system. Billet's unmatched wallwash provides even illumination of vertical surfaces, with exceptional uniformity (Max:Min. < 3:1) at a flexible setback 1/8 to 1/5 of the wall height. The optics on the Wallwasher were thoughtfully engineered to allow a flexible setback of the fixture from the wall, while maintaining an outstanding performance. Billet sets itself apart by being a forgiving system, yet unforgiving in its performance and quality.

Specifications

  • Delivered Luminous Output: 500 - 2500 lumens per foot
  • Outstanding transversal and longitudinal glare control
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K)1
  • Maximum: Minimum fc. values lower than 3:1
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V – ELV – DALI - DMX
  • Standard Finishes: Black – Grey – White - Custom RAL colors
  • 5-year limited warranty

  • 1 Custom CCT ranges available upon request
Wallwasher
$standardalt$
Photometric data: Type C Polar Curves
Wallwasher
