Opal

Surface Mounted

Billet, Bold's linear family of indoor and outdoor products, was created to meet exceptional performance standards, provide sleek and clean aesthetics, and to achieve ultimate flexibility. Whether for inground, ceiling, millwork, pendant, or wall-recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics, both indoor and outdoor. Our team worked meticulously to unify the baffle design of the entire Billet family into a homogenous form which would reflect the unity and harmony this system provides.

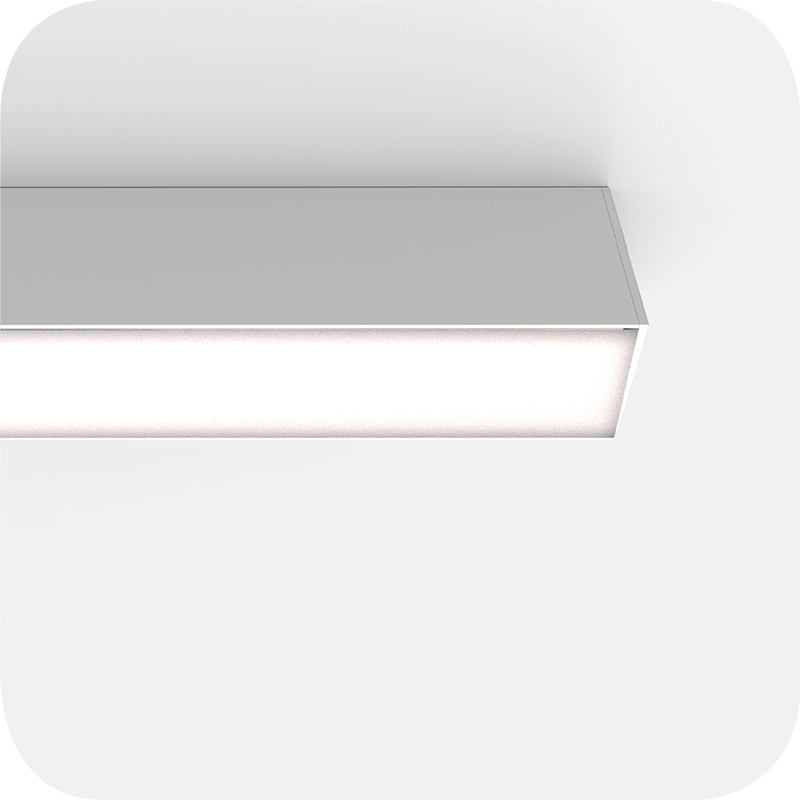

Billet's Opal lens offers a continuous line of illumination with excellent performance. Unlike traditional slot lights, Billet Opal maintains the same form factor and aesthetics for both indoor and outdoor.

Specifications

  • Delivered Luminous Output: 500 - 2500 lumens per foot
  • Light Distributions: 120° Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K) 1 – RGBW
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V (1%) - 0-10 (Fade to Black) – ELV – Lutron Ecosystem - DALI - DMX
  • 5-year limited warranty

  • 1 Custom CCT ranges available upon request
Opal
$standardalt$
Photometric data: Type C Polar Curves
Opal
