Caliber Outdoor

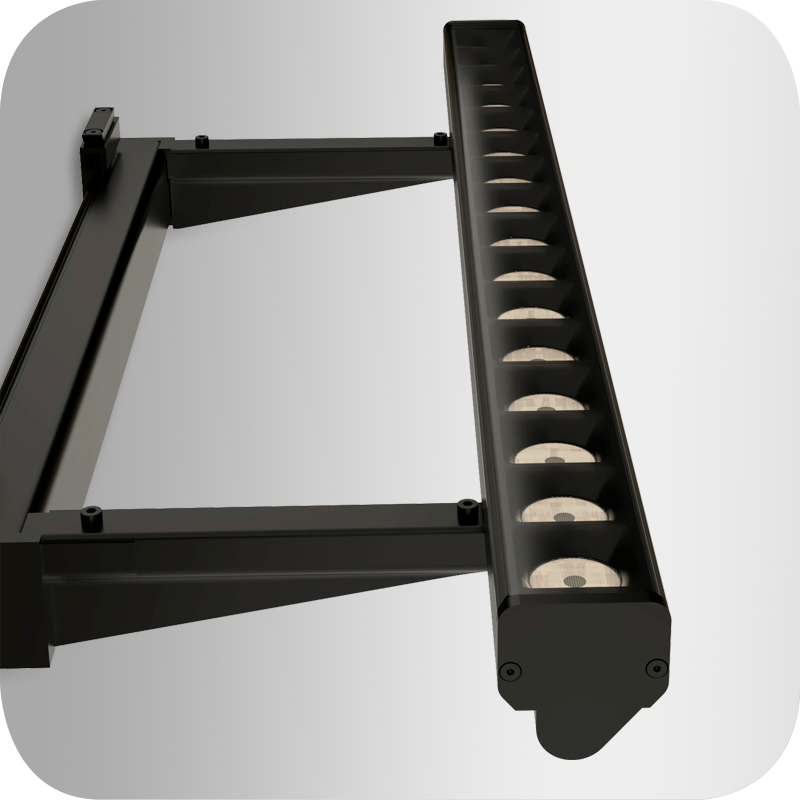

Surface Mounted Cantilever
Caliber is an innovative approach to linear lighting that combines a small form factor with powerful performance and flexibility in both mounting, adjustability, and light control.
The fixture can adjust up to 90° for precise aiming and can be specified with an adjustable glare-shield for added control of the output and beam spread. Caliber’s flexibility makes it ideal for grazing, wallwashing, and performance indirect lighting.
Specifications

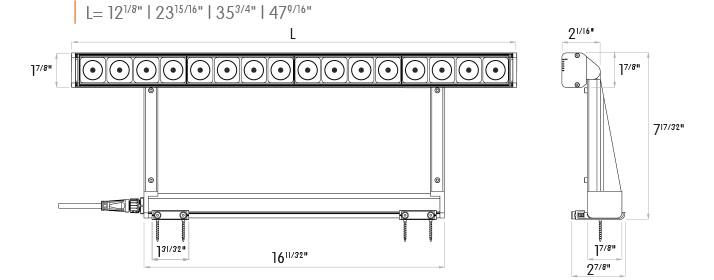

- Width 1.27/32” (47mm)
- Standard Nominal Lengths: 12” - 24” - 36” - 48” with continuous runs and custom configurations (including vertical runs and corners) available upon request.
- Cantilever Arms Lengths: 2” - 6” - 12” - 18” - 24”
- Sliding Glare Shield
- Tilt from 0 to 90°
- IP65, IK6 Rated
- Delivered Luminous Output: 476 - 2475 lumens per foot.
- Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Tunable White (2700K – 5000K) – Dim to Warm (3000K – 1800K)
- Standard CRI +80 and High CRI +90
- Light Distributions: Very-Narrow 8° – Narrow 15° – Flood 34° – Wide Beam 60° – Elliptical Beam 10x28° - 10x36°
- Standard Finishes: Black – White – Grey – Custom RAL
- Dimming Protocol: 0-10V – ELV – DALI – DMX – Non-Dim


Photometric data: Type C Polar Curves
