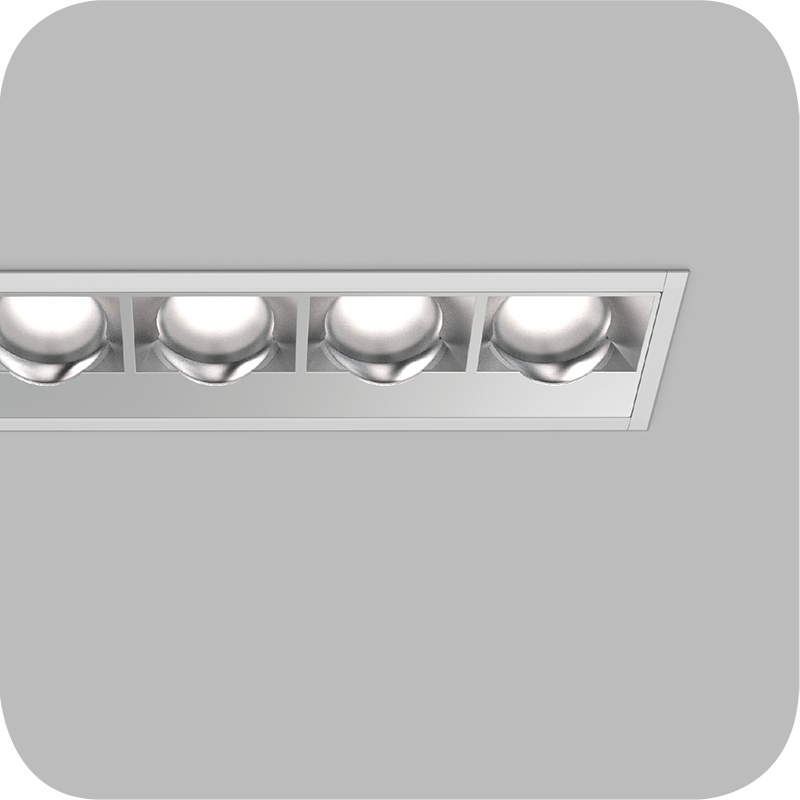

Recessed with Trim

Billet, Bold's linear family of indoor and outdoor products, was created to meet exceptional performance standards, provide sleek and clean aesthetics, and to achieve ultimate flexibility. Whether for inground, ceiling, millwork, pendant, or wall-recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics, both indoor and outdoor. Our team worked meticulously to unify the baffle design of the entire Billet family into a homogenous form which would reflect the unity and harmony this system provides.

The Billet Wallgrazer delivers bold vertical illumination with minimal glare thanks to the unique baffle system designed specifically for this product. The Billet confidently delivers a flawless graze and beautifully finished look.


  • Delivered Luminous Output: 500 - 2500 lumens per foot
  • Outstanding transversal and longitudinal glare control
  • Optics: 12° narrow beam
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K)1
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V - ELV - DALI - DMX
  • Standard Finishes: Black - Grey - White - Custom RAL colors
  • 5-year limited warranty

  • 1 Custom CCT ranges available upon request
Photometric data: Type C Polar Curves
