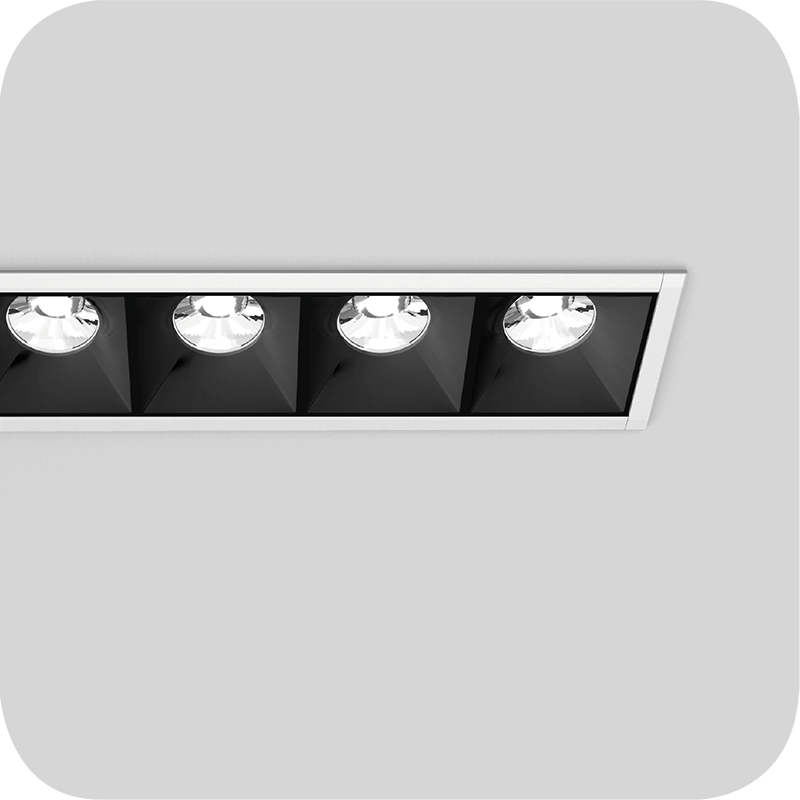

Symmetrical Baffles

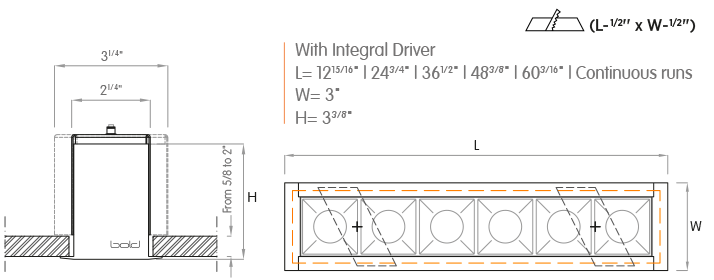

Recessed with Trim

Billet, Bold's linear family of indoor and outdoor products, was created to meet exceptional performance standards, provide sleek and clean aesthetics, and to achieve ultimate flexibility. Whether for inground, ceiling, millwork, pendant, or wall-recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics, both indoor and outdoor. Our team worked meticulously to unify the baffle design of the entire Billet family into a homogenous form which would reflect the unity and harmony this system provides.

Billet's Symmetrical Baffles offer a sleek aesthetic while providing uncompromising performance and exceptional glare control. Available in multiple distributions and sizes, the Billet is perfect for any environment.

Specifications

  • Delivered Luminous Output: 500 - 2500 lumens per foot
  • Light Distributions: 10° - 25° - 35° - Batwing 60° - Elliptical (15°x30°)1
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)2 - Dim to Warm (1800K-3000K)2
  • Optimal visual comfort – UGR<19
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V – ELV – DALI - DMX
  • 5-year limited warranty

  • 1 Additional Elliptical beams options available upon request
    2 Custom CCT ranges available upon request
Symmetrical Baffles
$standardalt$
Photometric data: Type C Polar Curves
Symmetrical Baffles
