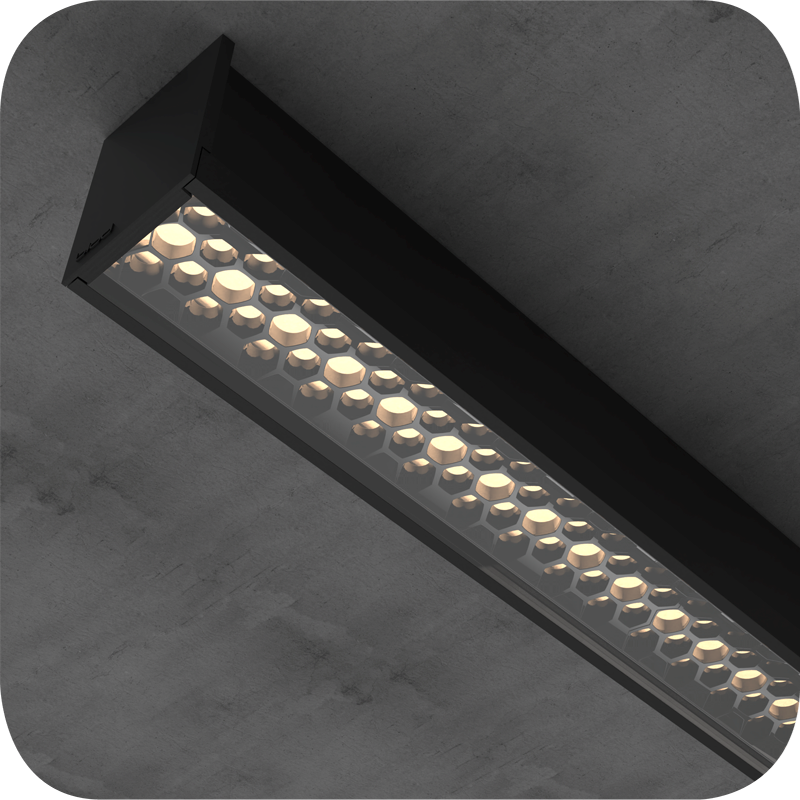

HoneyComb Opal

Surface Mounted

Whether for inground, ceiling, or wall recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics throughout the project. Our team worked tirelessly to unify the baffles design of the Wallwasher, the Wallgrazer and the general illumination products into a uniform shape that reflects the unity and harmony spirit we wanted in this product. The unique optical design of Billet, offers a high flexibility of light source colors, ranging from static white, to Dim-to-Warm, to Tunable White and even to RGBW. Billet HoneyComb Opal Surface Mounted carries a special honeycomb louver system for general illumination, offering an unparalleled glare reduction, while maintaining the ability to offer several beam angles with high efficiency. The geometry of this innovative optical device was studied to strike a perfect balance of efficiency and visual comfort. Our Billet family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Luminous Output: from 500lm/ft. to 2500lm/ft. (Delivered)
  • Light Distributions: 120° Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K)1 – RGBW
  • Optimal Visual conform. Glare control UGR<19
  • Available in Standard CRI +80, and High CRI +90
  • Dimmable through 0-10V, ELV, DALI, and DMX
  • Watertight IP67 Rating
  • Unique mechanical fixation of glass lens
  • Body finishes: Black, Grey, White or Custom RAL colors
  • 5 years limited warranty

  • 1 Custom CCT ranges available upon request
HoneyComb Opal
$standardalt$
Photometric data: Type C Polar Curves
HoneyComb Opal

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
