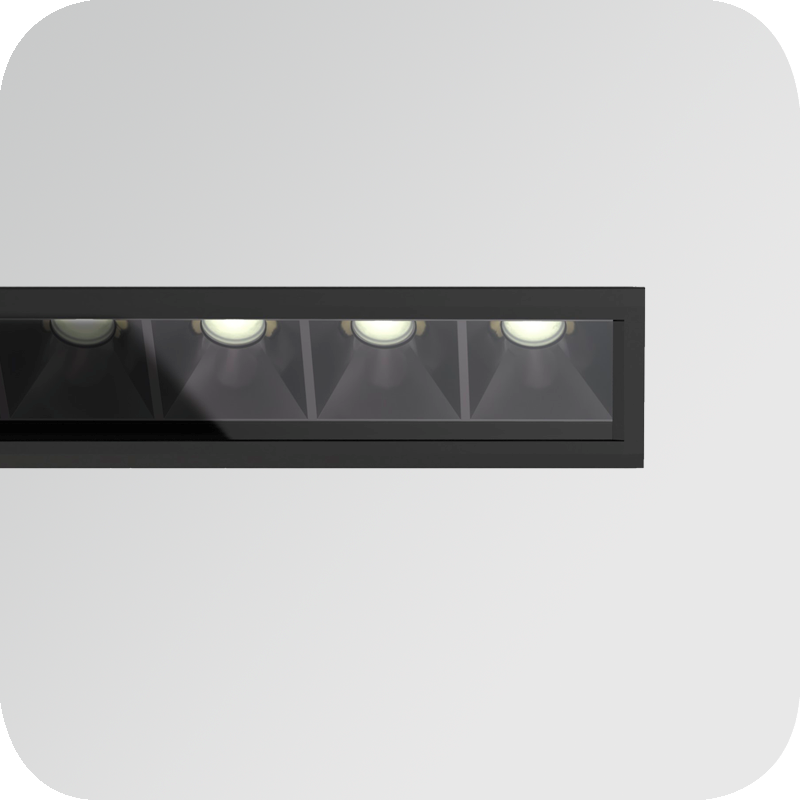

Symmetrical Baffles Deep-BOD-R
Ceiling with Trim
The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall aesthetics.
Billet's Symmetrical Baffles Deep Ceiling with Trim were designed to provide unmatched performance while maintaining minimal glare. The Billet confidently delivers a flawless light distribution and a beautifully finished product. Our Billet family complies with the Build America, Buy America (BABA) requirements.
Specifications
- Delivered Luminous Output: 420 - 1620 lumens per foot
- Light Distributions: 10° - 20° - 28° - 50° - Elliptical (10°x28°) - (10°x36°)
- Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K) - Dim to Warm (1800K-3000K) - RGBW
- Optimal visual comfort – UGR<10
- CRI +90
- Dimming Protocol: 0-10V – ELV – DALI - DMX - Lutron Hi-Lume
- 5-year limited warranty
Photometric data: Type C Polar Curves
