Asymmetric-LOW-S
Surface Mounted

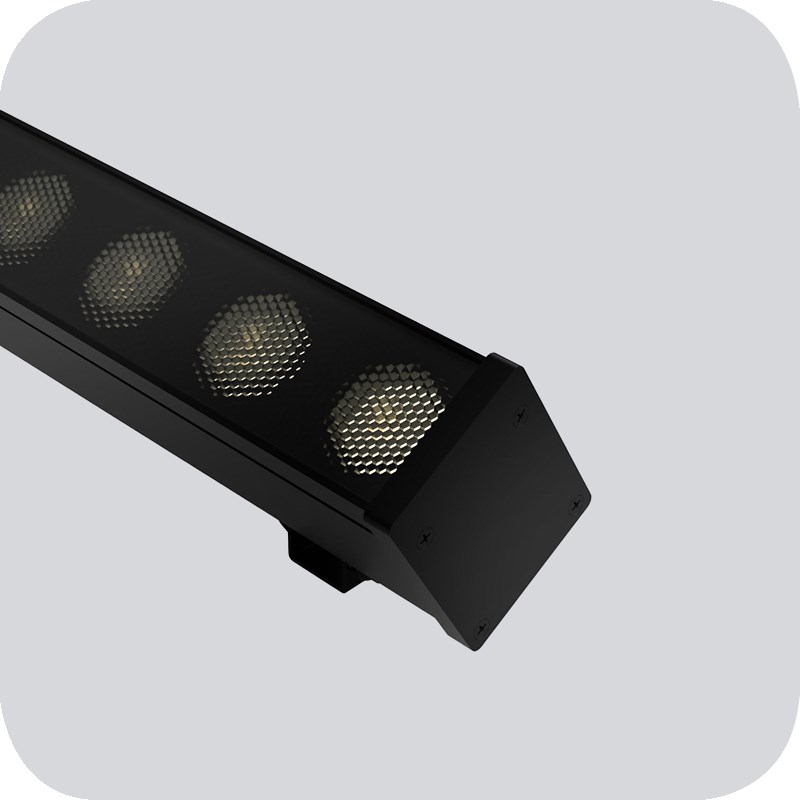

Lance is an innovative approach to linear lighting that combines a small form factor with powerful performance and flexibility in both mounting, adjustability, and light control.
The fixture can adjust up to 90° for precise aiming and can be specified with an adjustable glare-shield for added control of the output and beam spread.
Lance's flexibility makes it ideal for grazing, wallwashing, and performance indirect lighting.
Specifications
- Luminous Output: 416 - 2282 lumens per foot
- Optical distribution: 10° / 20° / 28° / 50° / Elliptical (10°x28°) / (10°x36°)
- Available Color Temperatures (CCT): 2700K / 3000K / 3500K / 4000K / Tunable White (2700K-5000K) / Dim to Warm (1800K-3000K) / RGBW
- Glare control: UGR<19
- Color Rendering Index: Ra80 / Ra90
- IP67
- Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume

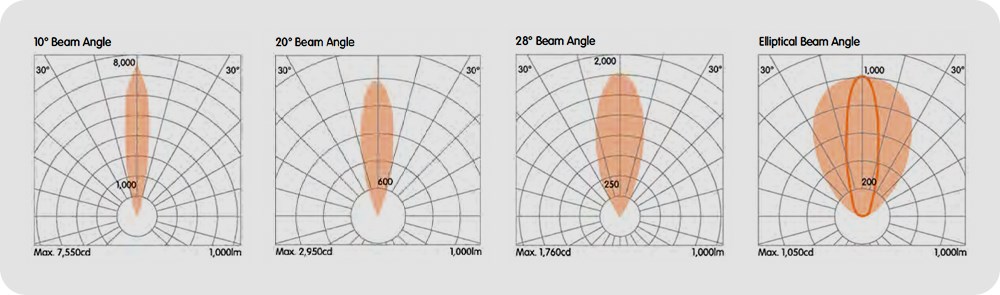

Photometric data: Type C Polar Curves
