Integral Baffled-LBW-S
Surface Mounted
Lance is an innovative approach to linear lighting that combines a small form factor with powerful performance and flexibility in both mounting, adjustability, and light control.
The fixture can adjust up to 90° for precise aiming and can be specified with an adjustable glare-shield for added control of the output and beam spread.
Specifications
- Luminous Output: 1580 - 4960 lumens per foot
- Optical distribution: 10º / 20º / 28º / 50° / Elliptical (10°x28°) / (10°x36°) / Asymmetric
- Available Color Temperatures (CCT): 2700K / 3000K / 3500K 4000K / Tunable White (2700K-5000K) / Dim-to-Warm (3000K-1800K) / RGBW
- Color Rendering Index: Ra90
- IP66
- Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume

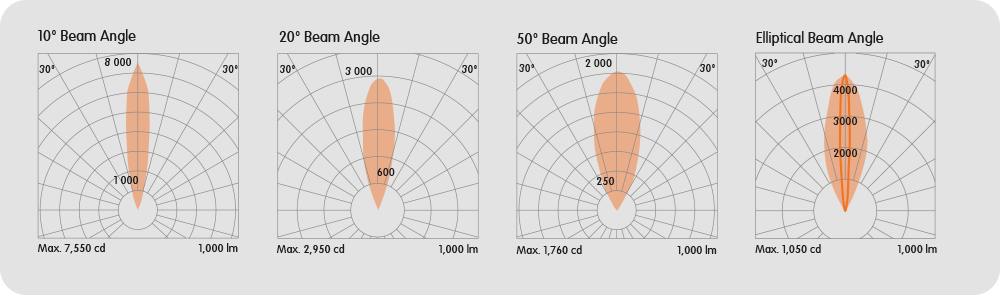

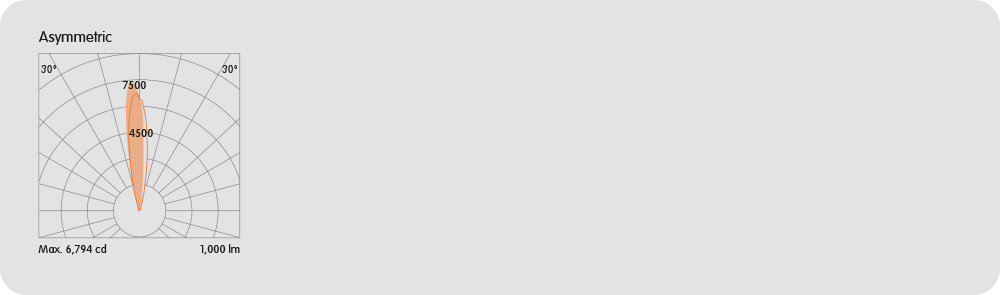

Photometric data: Type C Polar Curves
