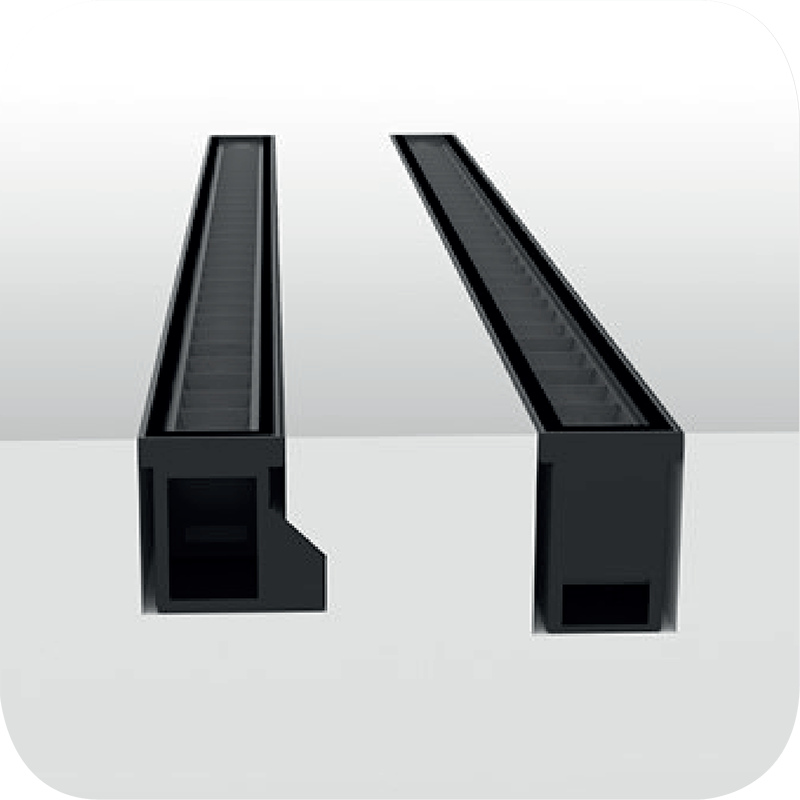

U6 Symmetrical Baffles

Inground

The U6 (formerly U60) Inground Symmetric Baffles achieves exceptional visual comfort while uniformly illuminating the horizontal surfaces. The baffles offer excellent glare control and are compatible with a wide array of beam angles.

Specifications

  • Width 3.5”
  • Standard Nominal Length: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Available in shallow housing 4.5” and deep housing 6” versions
  • IP67, IK10 Rated
  • Delivered Luminous Output: 400 - 950 lumens per foot.
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: 16°- 34°- 46° - Elliptical 12° x 35°
  • Dimming Protocols: 0-10V – ELV – DALI - DMX
  • Standard Finishes: White – Black - Grey - Custom RAL color
  • Drive-Over up to 2000 kg. or 4400 lbs.
U6 Symmetrical Baffles
$standardalt$

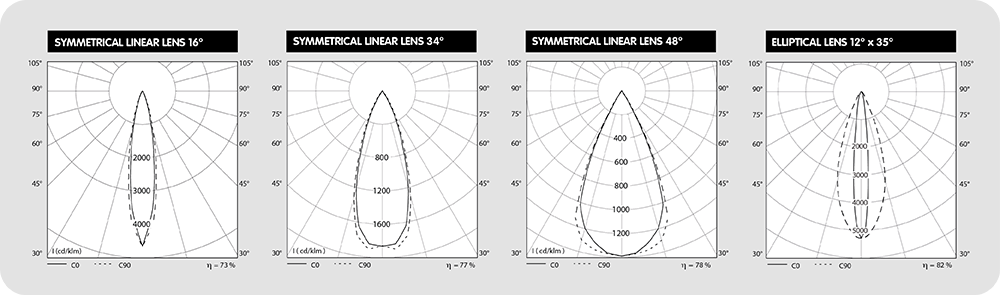

Photometric data: Type C Polar Curves
U6 Symmetrical Baffles
