U6 Linear Lenses

Inground

The U6 (formerly U060) Inground Linear Lenses keep with the Company’s "Simplicity in All Matters’ philosophy. This design approach has given birth to innovative fixtures which provide exceptional performance and offer specifiers the ease of configurations for a multitude of applications.

Specifications

  • Width 3.5” (89mm)
  • Standard Nominal Lengths: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations (including vertical runs and corners) available upon request.
  • Available in shallow housing 4.5” and deep housing 6” versions
  • IP67, IK10 Rated
  • Delivered Luminous Output: 400 - 700 lumens per foot.
  • Available Color Temperatures (CCT): 2700K – 3000K– 3500K – 4000K – Dim to Warm (3000K – 1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: Ultra-Narrow 8° and Narrow 16°
  • Standard Finishes: Black – White – Grey - Custom RAL
  • Dimming Protocol: 0-10V – ELV – DALI - DMX
  • Drive-Over up to 2000 kg. or 4400 lbs.
U6 Linear Lenses
$standardalt$

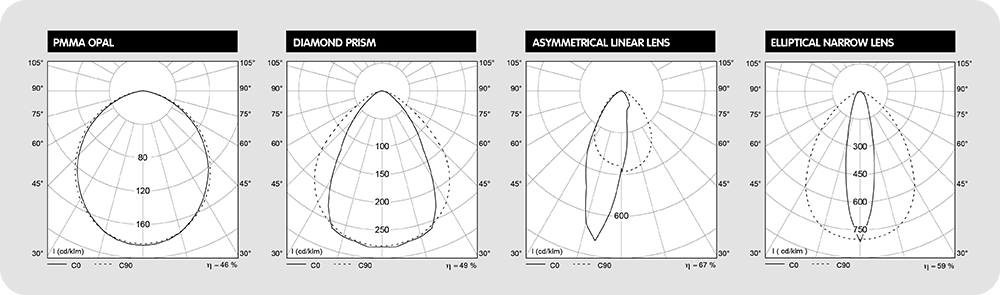

Photometric data: Type C Polar Curves
