U6 Grazing Baffles

Inground

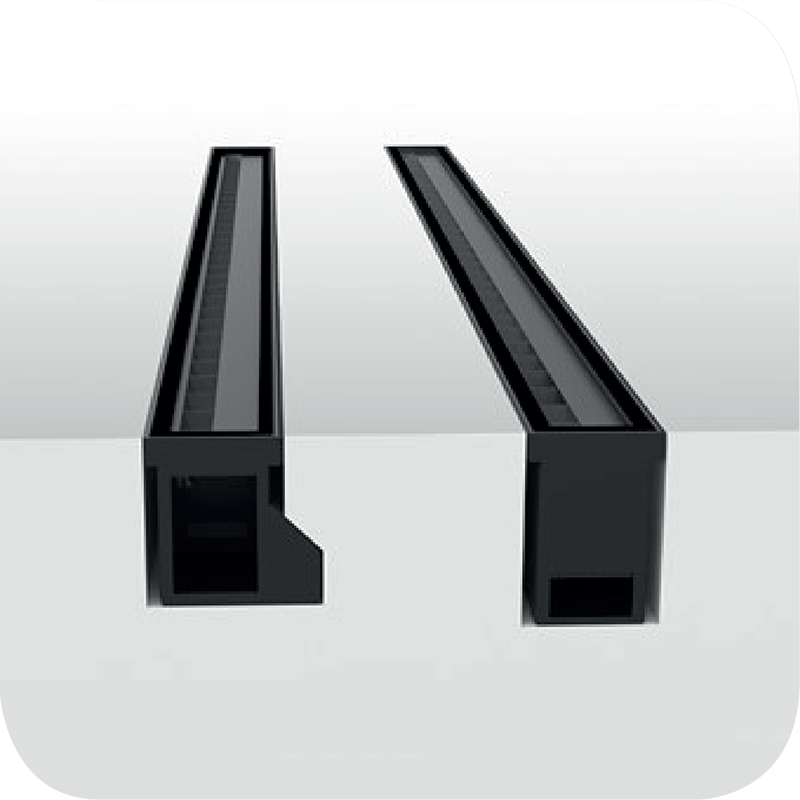

The U6 (formerly U060) Inground Wallgrazer offers best-in-class grazing capabilities. The luminaire is designed to emphasize rough-textured surfaces up to 15ft. (5m) high. Its Anti-glare optics exceptionally control glare from both the longitudinal and transversal sides.

Specifications

  • Width 3.5” (89mm)
  • Standard Nominal Length: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Available in shallow housing 4.5” and deep housing 6” versions
  • IP67, IK10 Rated
  • Luminous Output: 400 - 750 lumens per foot
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: Ultra-Narrow 8° and Narrow 16°
  • Standard Finishes: Black – White – Grey - Custom RAL
  • Dimming Protocols: 0-10V - ELV - DALI - DMX
  • Drive-Over up to 2000 kg. or 4400 lbs.
U6 Grazing Baffles
$standardalt$

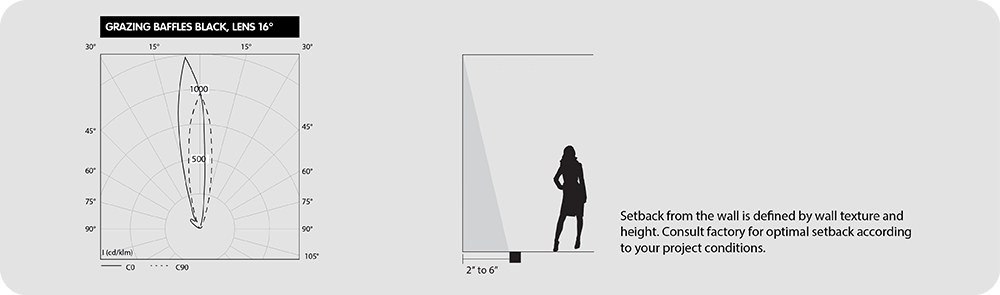

Photometric data: Type C Polar Curves
U6 Grazing Baffles
