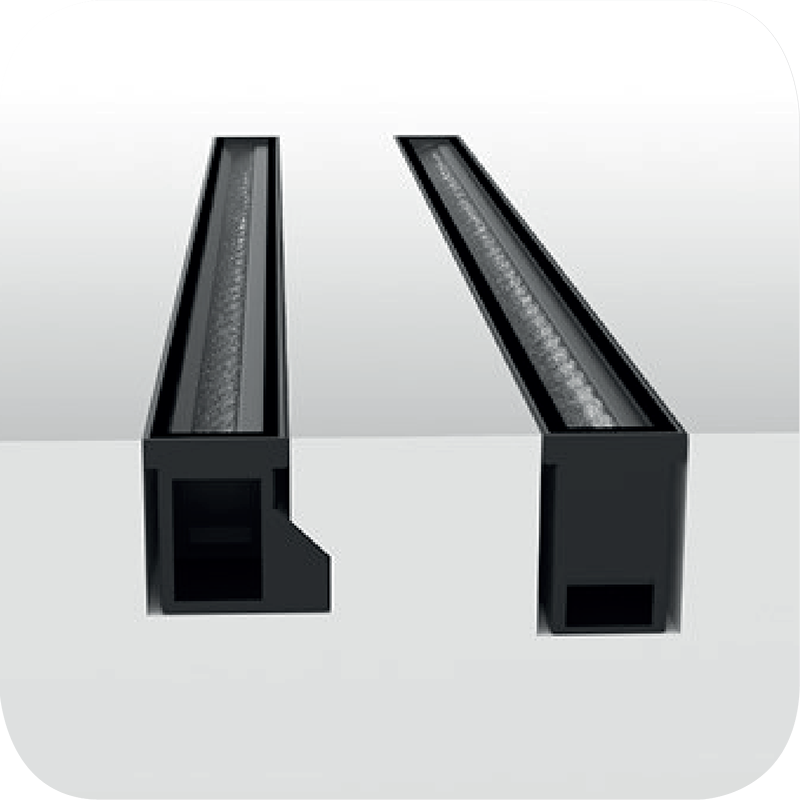

U6 Cut Off Washer


The U6 (formerly U060) full cut-off washer offers a flawless surface uniformity while blocking the backward and longitudinal light spill. This luminaire is truly glare-free, making it a unicorn amongst horses! Designed to be highly configurable in output and lengths, it is perfect for both standard and highly complex applications. Its optics are designed to provide uncompromising performance, color consistency, and flawless LED color mixing when used with Tunable White or Dim-to-Warm.


  • Width 3.5”
  • Standard Nominal Lengths: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Available in shallow housing 4.5”and deep housing 6”versions
  • IP67, IK10 Rated
  • Delivered Luminous Output: 500 - 950 lumens per foot
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K - Tunable White (2200K-5000K) and Dim to Warm (2700K-1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distribution: Full Cut-Off wallwasher
  • Standard Finishes: Black – White – Grey -Custom RAL
  • Drive-Over up to 2000 kg. or 4400 lbs.
U6 Cut Off Washer

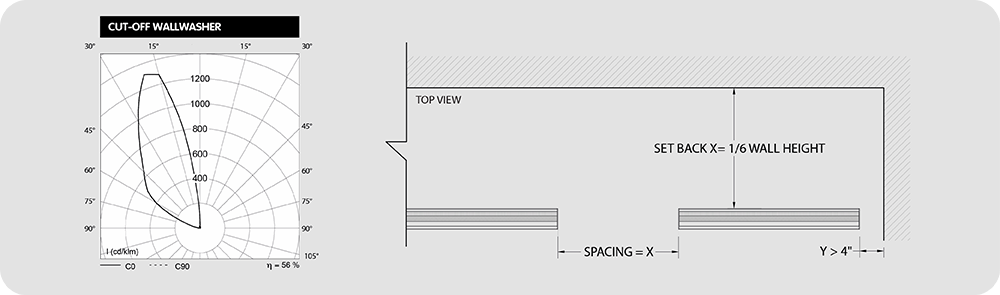

Photometric data: Type C Polar Curves
U6 Cut Off Washer


Maximum allowed voltage drop is 3V
