U5 Remote Grazing Baffles

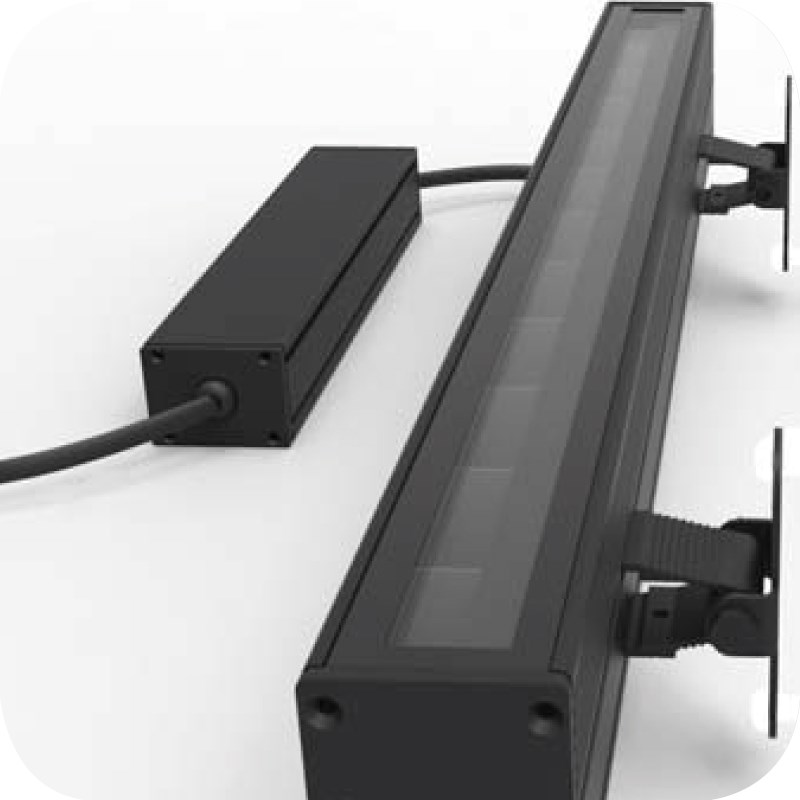

The U5 Outdoor baffled Grazer (available in black, white or grey) is optically engineered to offer best-in-class grazing capabilities. The luminaire was designed as a tool for designers to emphasize rough-textured surfaces up to 30ft. (10m) high. The specially designed Anti-glare optics control glare, exceptionally, from both the longitudinal and transversal sides of the profile, achieving a powerful effect. Ideal for surfaces of great height, for outdoor Facade applications, or heritage and brick architecture. The grazing effect starts from the zero point of the wall.


  • Grazer lighting product with extruded aluminum body
  • Finishes in black smooth, white smooth, grey smooth and custom colors upon request
  • Used in outdoor environments, floor mounted on stone, concrete, metal or wood surfaces
  • Width of 2”, height of 2 9/16”and length ranging from 11.8” to 47” with an increment of 11.8”
  • Delivered luminous output per meter from 300lm/ft. to 520lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 3,500K and 4,000K
  • Color rendering index CRI 80+ and CRI 90+
  • Light emission beam: 16° - 30° (only the 16° is included in the datasheet although in the nomenclature the 30° is mentioned)
  • IK08
U5 Remote Grazing Baffles

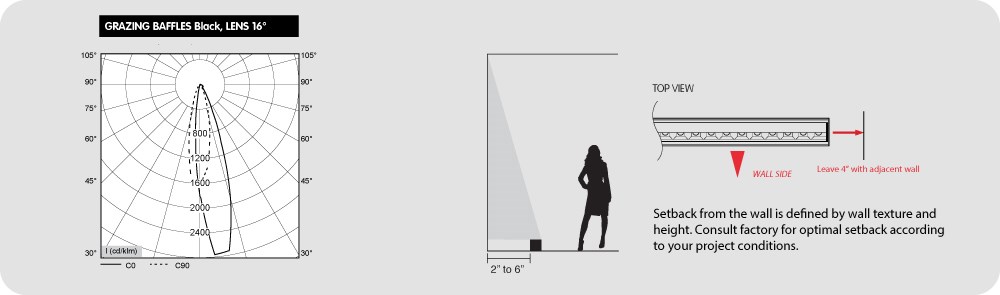

Photometric data: Type C Polar Curves
U5 Remote Grazing Baffles


Maximum allowed voltage drop is 3V
