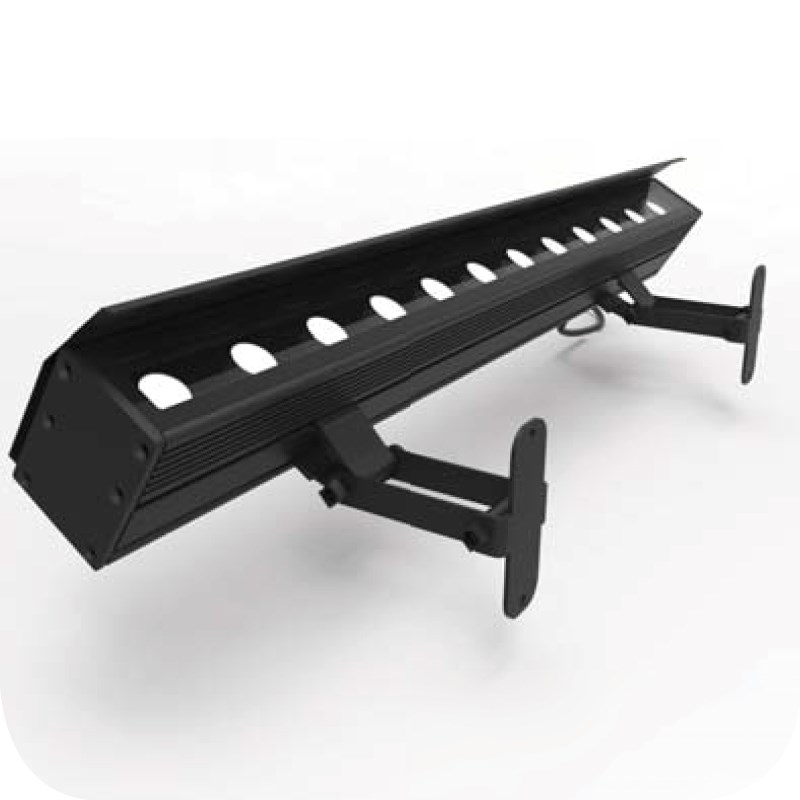

U5 Integral Driver

Inground

Our linear range abides by our ‘simplicity in all matters’ philosophy. Our team’s distinctive approach to industrial design and electronic applications has given birth to an innovative breed of easy-to- configure systems for sustainable indoor and outdoor lighting. Built to adapt to architectural needs, our line-up consists of 2 distinct yet complementary spec grade systems made from extruded aluminum and manufactured to support a wide range of optic, output and mounting combinations.

Specifications

  • Ambient lighting product with extruded aluminum body
  • Finishes in black smooth, white smooth, grey smooth and custom colors upon request
  • Used in outdoor environments, floor mounted on stone, concrete, metal or wood surfaces
  • Width  of 54mm, height of 69mm and length ranging from 300 to 1200mm with an increment of 300mm
  • Delivered luminous output per meter from  4000lm/ft. to 950lm/ft.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 3,500K and 4,000K
  • Color rendering index CRI 80+ and CRI 90+
  • Light emission beam:  16° - 30° - 60° - 10°x50° - 15°x30° and Wallwash
  • IK08
U5 Integral Driver
$standardalt$

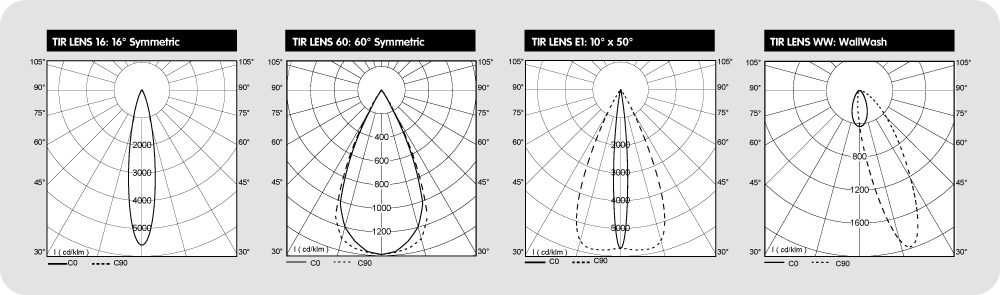

Photometric data: Type C Polar Curves
U5 Integral Driver
