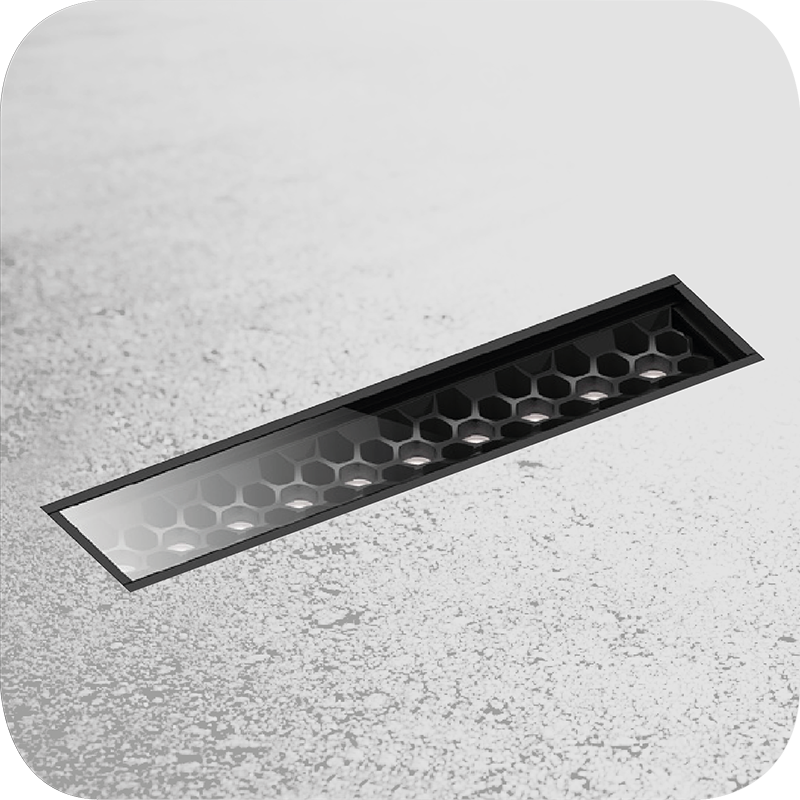

HoneyComb TIR

Inground

Billet, Bold's linear family of indoor and outdoor products, was created to meet exceptional performance standards, provide sleek and clean aesthetics, and to achieve ultimate flexibility. Whether for inground, ceiling, millwork, pendant, or wall-recessed applications, Billet allows you to maintain the same optical performance, light consistency, and overall aesthetics, both indoor and outdoor. Our team worked meticulously to unify the baffle design of the entire Billet family into a homogenous form which would reflect the unity and harmony this system provides.

Adding to the elegance of the fixture, Billet offers a special honeycomb louver for general illumination. Extensive R&D was put into the louver design to ensure maximum optical performance without interfering with the LEDs emitted rays causing multiple projected shadows. The result was a fixture which offered unparalleled visual comfort, performance, and a new take on the traditional louver aesthetic.

Specifications

  • Delivered Luminous Output: 500 - 2500 lumens per foot
  • Light Distributions: 10° - 25° - 35° - Batwing 60° - Elliptical (15°x30°)1 – Asymmetric - Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)2 - Dim to Warm (1800K-3000K)2 – RGBW
  • Optimal visual comfort - UGR<19
  • Standard CRI +80 and High CRI +90
  • IP67 - IK10
  • Unique glass mechanical fixation
  • Dimming Protocol: 0-10V (1%) - 0-10 (Fade to Black) – ELV – Lutron Ecosystem - DALI - DMX
  • 5-year limited warranty

  • 1 Elliptical beam available with additional optics upon request
    2 Custom CCT ranges available upon request
HoneyComb TIR
$standardalt$

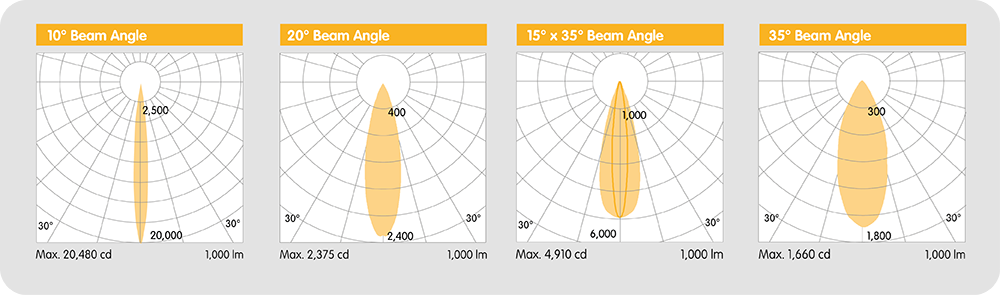

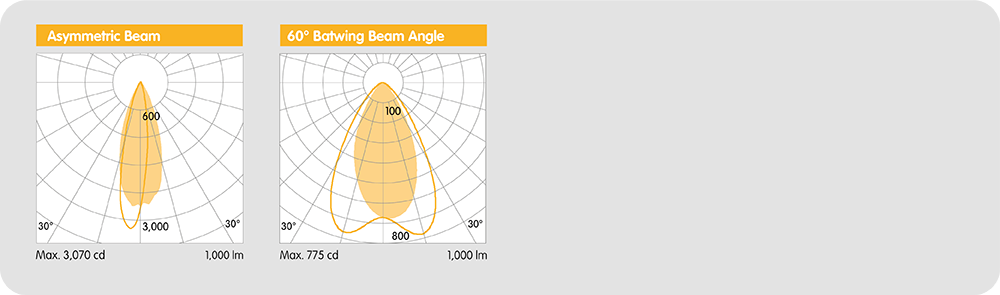

Photometric data: Type C Polar Curves
HoneyComb TIR HoneyComb TIR
