Caliber Outdoor

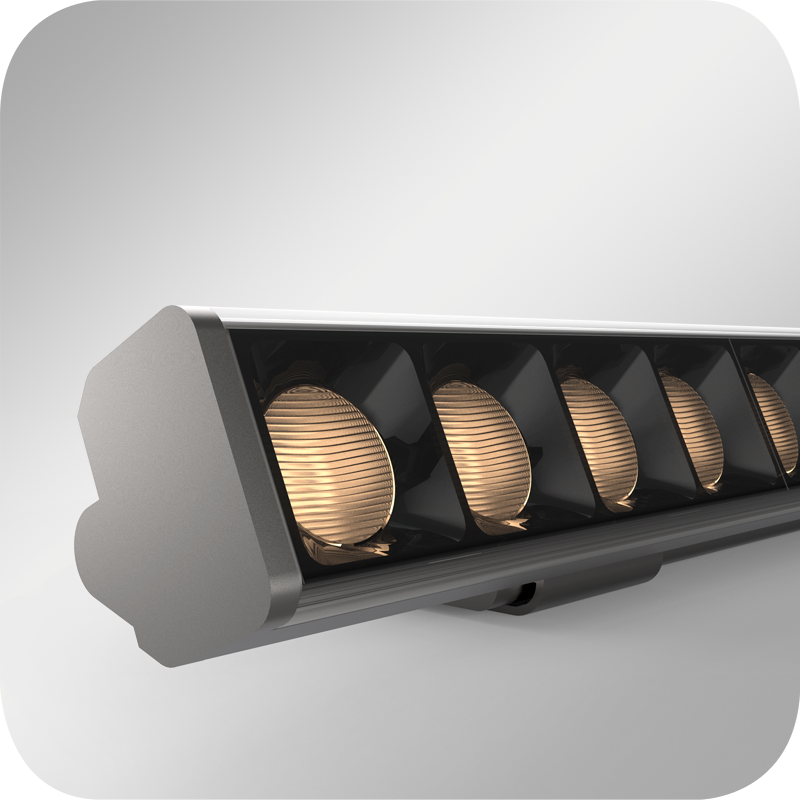

Surface Mounted Brackets

Caliber is an innovative approach to linear lighting that combines a small form factor with powerful performance and flexibility in both mounting, adjustability, and light control.

The fixture can adjust up to 90° for precise aiming and can be specified with an adjustable glare-shield for added control of the output and beam spread. Caliber’s flexibility makes it ideal for grazing, wallwashing, and performance indirect lighting.

Specifications

  • Width 3.3/4” (95mm)
  • Standard Nominal Lengths: 12” - 24” - 36” - 48” with continuous runs and custom configurations (including vertical runs and corners) available upon request.
  • Sliding Glare Shield
  • Tilt from 0 to 90°
  • IP65, IK6 Rated
  • Delivered Luminous Output: 375 - 1950 lumens per foot.
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Tunable White (2700K – 5000K) – Dim to Warm (3000K – 1800K) / RGBW
  • Standard CRI +80 and High CRI +90
  • Light Distributions: Very-Narrow 8° – Narrow 15° – Flood 34° – Wide Beam 60° – Elliptical Beam 10x28° - 10x36°
  • Standard Finishes: Black – White – Grey – Custom RAL
  • Dimming Protocol: 0-10V – ELV – DALI – DMX – Non-Dim
Caliber Outdoor
$standardalt$

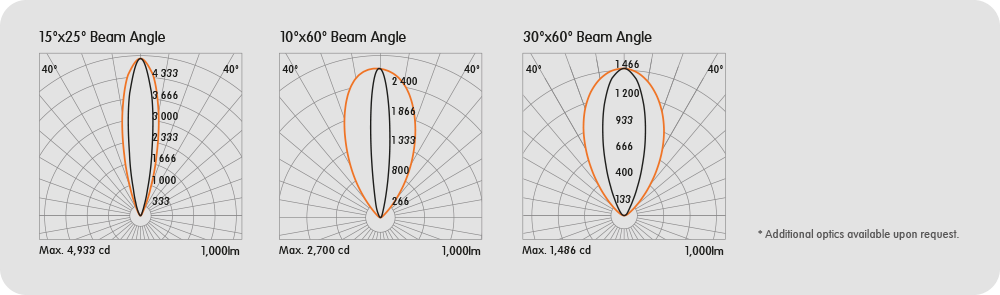

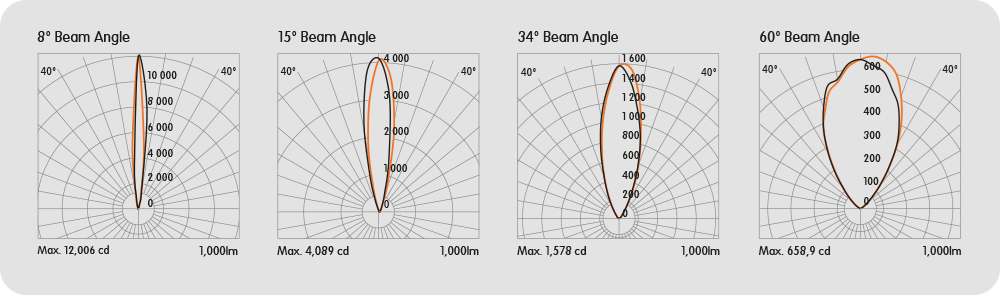

Photometric data: Type C Polar Curves
Caliber Outdoor Caliber Outdoor
