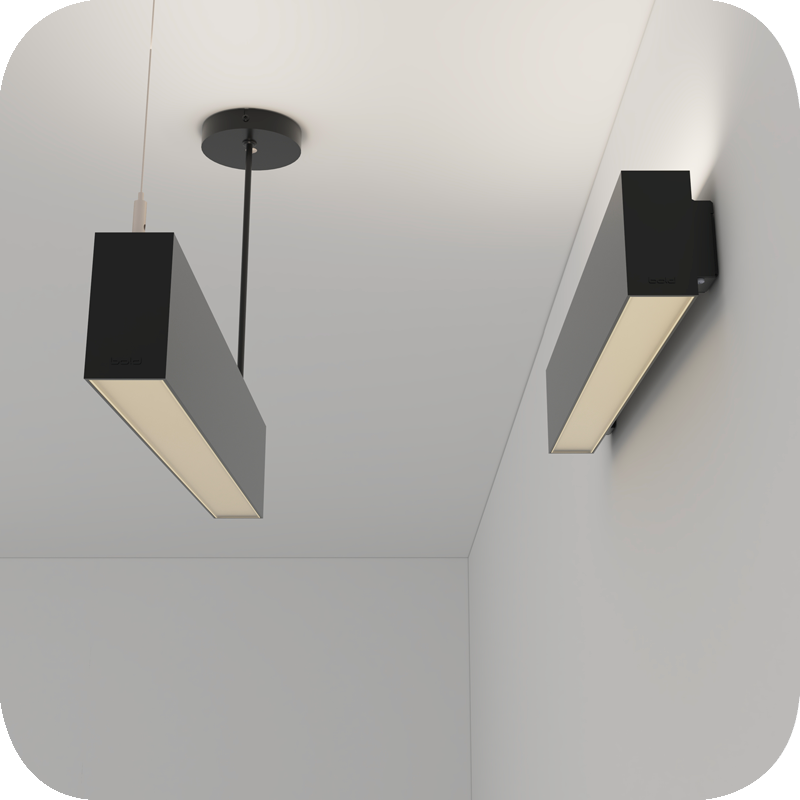

Direct/Indirect Opal-BIIO-W

Wall Mounted

The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall aesthetics. Billet Direct/Indirect is a continuation of the award winning Billet family and offers multiple indirect distributions for all linear pendant application needs.

The Billet linear lenses deliver bold vertical and horizontal illumination perfect for ambient lighting and washing. Like all Bold products, the Billet Direct/Indirect Opal Wall Mounted confidently delivers a flawless light distribution and a beautifully finished product. Our Billet family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Delivered Luminous Output: Direct from 340 to 1450 lumens per foot, Indirect from 2340 to 1450 lumens per foot
  • Light Distributions: Direct: Lambertian, Indirect: Batwing / Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume3

    • 1 Denotes output specific to Tunable White at full on.
    3 Hi-Lume 1% EcoSystem Soft-on, Fade-to-Black dimming.
Direct/Indirect Opal-BIIO-W
Direct/Indirect Opal-BIIO-W
$standardalt$
Photometric data: Type C Polar Curves
Direct/Indirect Opal-BIIO-W Direct/Indirect Opal-BIIO-W
