Direct/Indirect Wallwasher


The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall aesthetics. Billet Direct/Indirect is a continuation of the award winning Billet family and offers multiple indirect distributions for all linear pendant application needs.

The Billet wallwasher delivers unmatched vertical illumination with virtually zero glare. Like all Bold products, the Billet confidently delivers a flawless light distribution and a beautifully finished product.


  • Delivered Luminous Output: Direct from 410 to 2680 lumens per foot, Indirect from 290 to 1570 lumens per foot
  • Light Distributions: Direct: Wallwasher (25°), Indirect: Batwing / Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim-to-Warm (3000K-1800K)2
  • Optimal visual comfort - UGR<19
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume3

  • 1 Denotes output specific to Tunable White at full on.
    2 Denotes output specific to Dim-to-Warm at 3000K.
    3 Hi-Lume 1% EcoSystem Soft-on, Fade-to-Black dimming.
Direct/Indirect Wallwasher

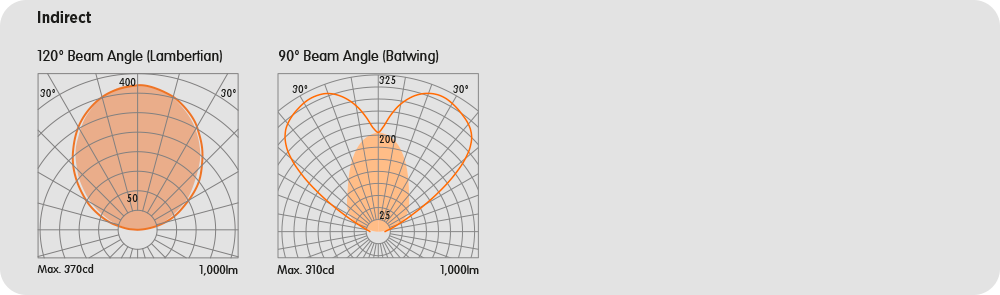

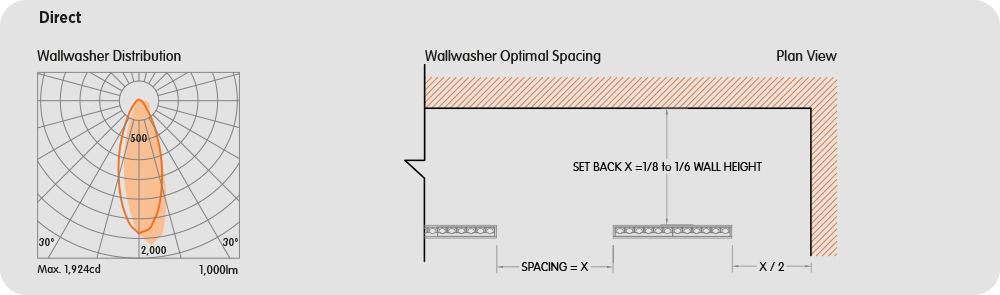

Photometric data: Type C Polar Curves
Direct/Indirect Wallwasher Direct/Indirect Wallwasher Direct/Indirect Wallwasher


Maximum allowed voltage drop is 3V
