Direct/Indirect Opal

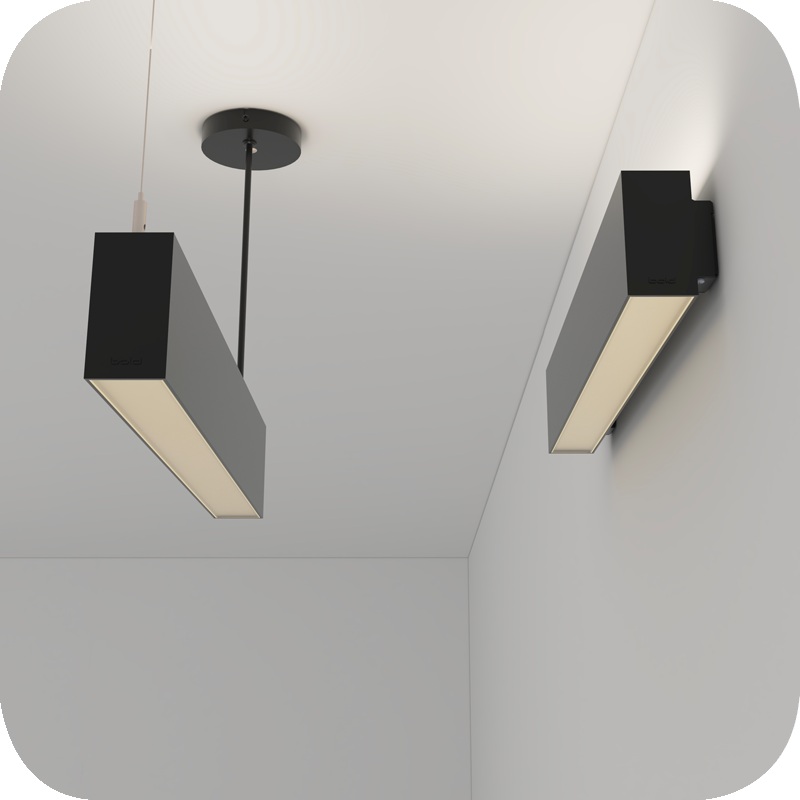

The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall aesthetics. Billet Direct/Indirect is a continuation of the award winning Billet family and offers multiple indirect distributions for all linear pendant application needs.

The Billet linear lenses deliver bold vertical and horizontal illumination perfect for ambient lighting and washing. Like all Bold products, the Billet confidently delivers a flawless light distribution and a beautifully finished product.


  • Delivered Luminous Output: Direct from 290 to 1570 lumens per foot, Indirect from 290 to 1570 lumens per foot
  • Light Distributions: Direct: Elliptical (20°x40°) / Asymmetric / Lambertian, Indirect: Batwing / Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim-to-Warm (3000K-1800K)2
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume3

  • 1 Denotes output specific to Tunable White at full on.
    2 Denotes output specific to Dim-to-Warm at 3000K.
    3 Hi-Lume 1% EcoSystem Soft-on, Fade-to-Black dimming.
Direct/Indirect Opal

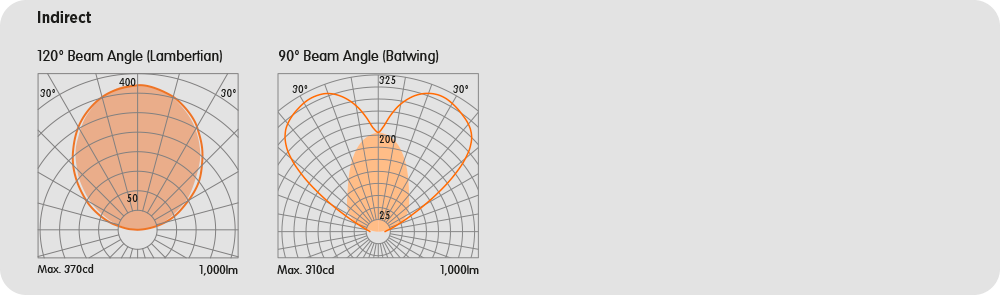

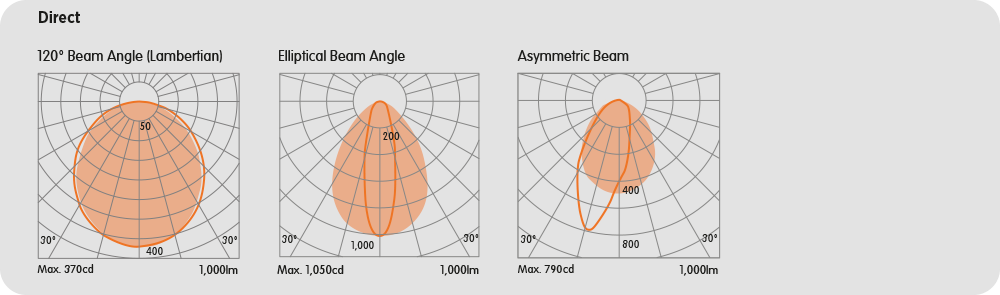

Photometric data: Type C Polar Curves
Direct/Indirect Opal Direct/Indirect Opal


Maximum allowed voltage drop is 3V
