Direct/Indirect Honeycomb Opal

Pendant

The Billet family of products allows you to achieve uniformity throughout indoor and outdoor spaces while maintaining the same optical performance, light consistency, and overall aesthetics. Billet Direct/Indirect is a continuation of the award winning Billet family and offers multiple indirect distributions for all linear pendant application needs.

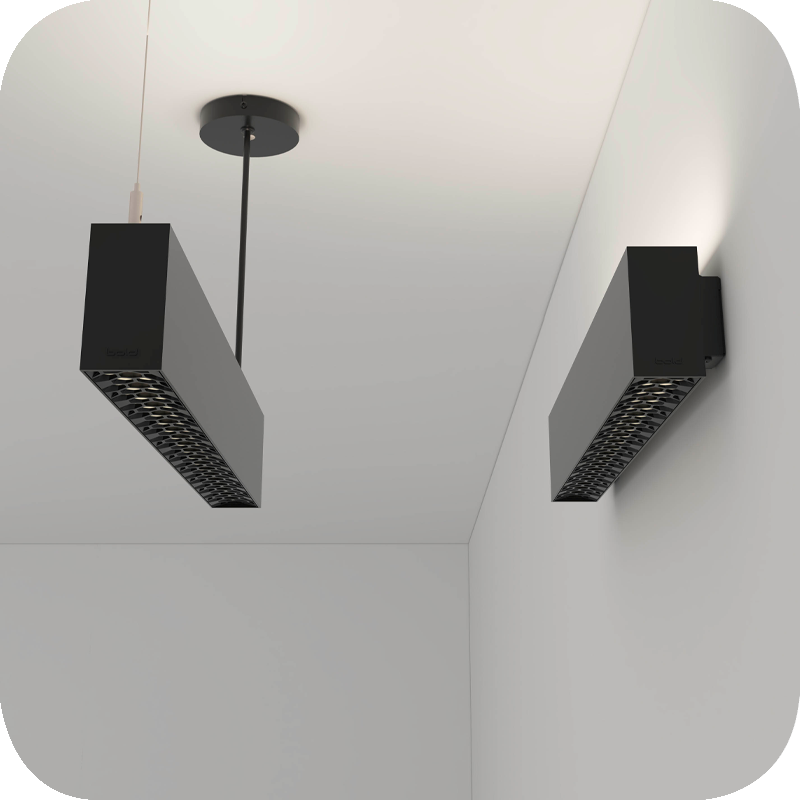

The Billet Direct/Indirect Honeycomb Opal Pendant was designed to provide performance illumination and a decorative aesthetic while maintaining minimal glare. Like all Bold products, the Billet Honeycomb confidently delivers a flawless light distribution and a beautifully finished product. Our Billet family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Delivered Luminous Output: Direct from 150 to 840 lumens per foot, Indirect from 290 to 1570 lumens per foot
  • Light Distributions: Direct: Lambertian, Indirect: Batwing / Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim-to-Warm (3000K-1800K)2
  • Optimal visual comfort - UGR<19
  • Standard CRI +80 and High CRI +90
  • Dimming Protocol: 0-10V / ELV / DALI / DMX / Lutron Hi-Lume3

  • 1 Denotes output specific to Tunable White at full on.
    2 Denotes output specific to Dim-to-Warm at 3000K.
    3 Hi-Lume 1% EcoSystem Soft-on, Fade-to-Black dimming.
Direct/Indirect Honeycomb Opal
$standardalt$

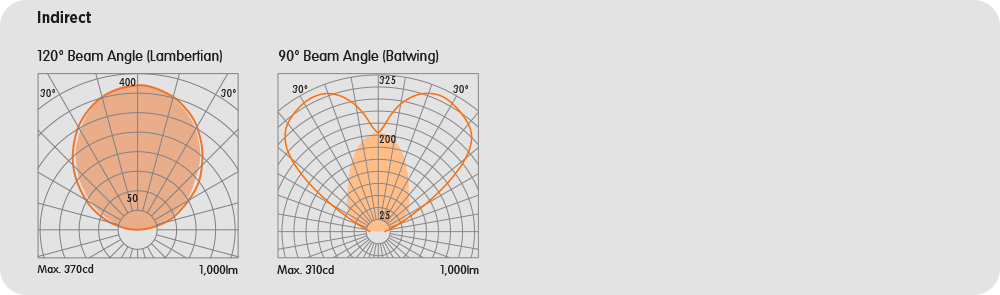

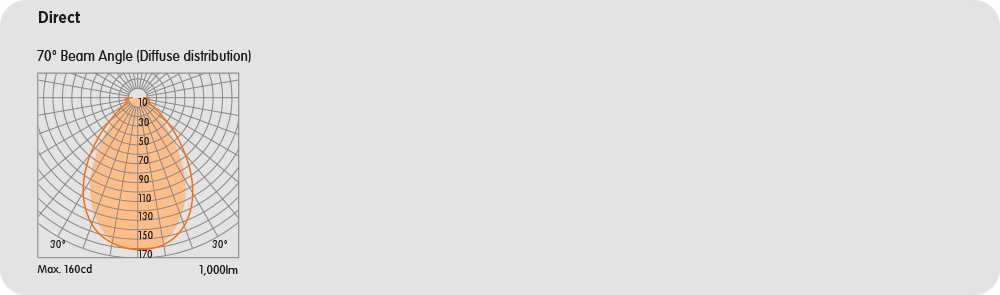

Photometric data: Type C Polar Curves
Direct/Indirect Honeycomb Opal Direct/Indirect Honeycomb Opal

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
