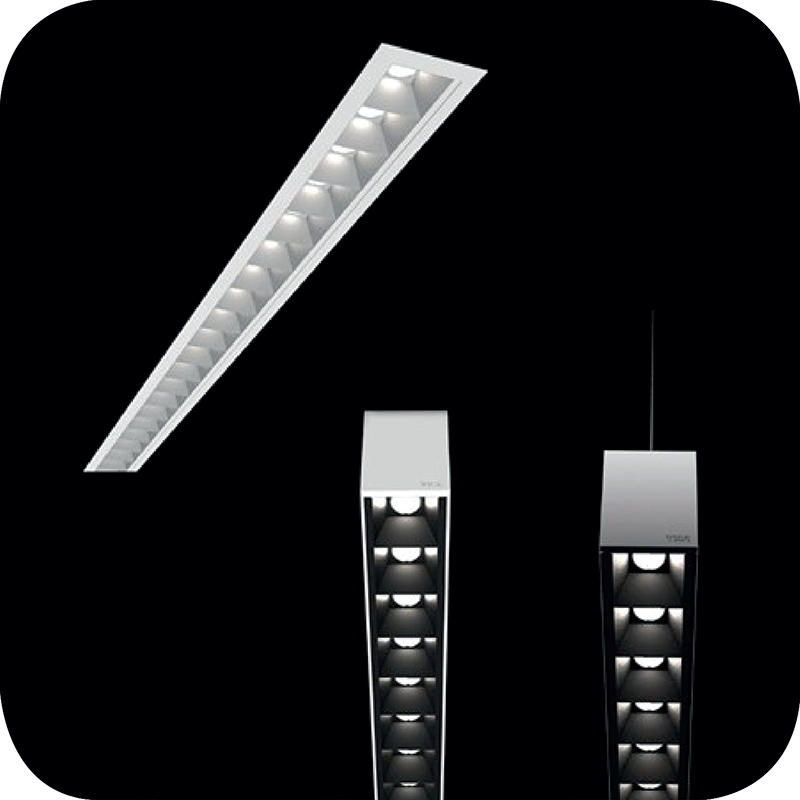

L6 Symmetrical Baffles

The L6 (formerly U060) Symmetric Baffles achieves exceptional visual comfort while homogeneously illuminating the volume of the space. The baffles offer excellent glare control and are compatible with a wide array of beam angles.

Specifications

  • Width 2.4”
  • Standard Nominal Length: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Mounting: Recessed Trimless - Recessed with Trim - Recessed Millwork - Surface Mount - Pendant - Wall Mount
  • Delivered Luminous Output: 450 - 950 lumens per foot.
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: 16° - 34° - 46° - Elliptical 12° x 35°
  • Standard Finishes: Black – White – Grey - Custom RAL
  • Dimming Protocols: 0-10V - ELV - DALI - DMX
L6 Symmetrical Baffles
L6 Symmetrical Baffles
$standardalt$

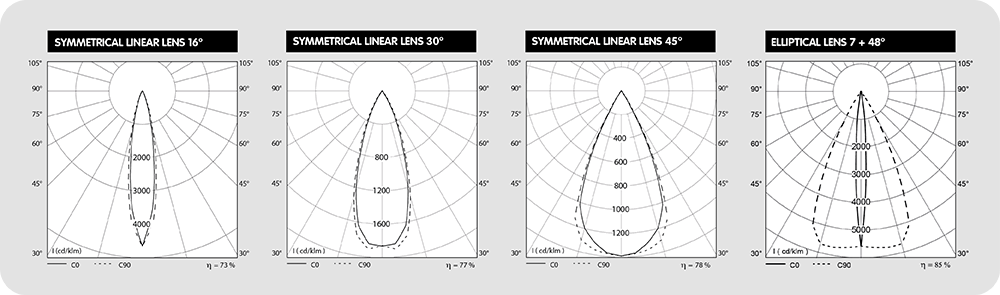

Photometric data: Type C Polar Curves
L6 Symmetrical Baffles

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
