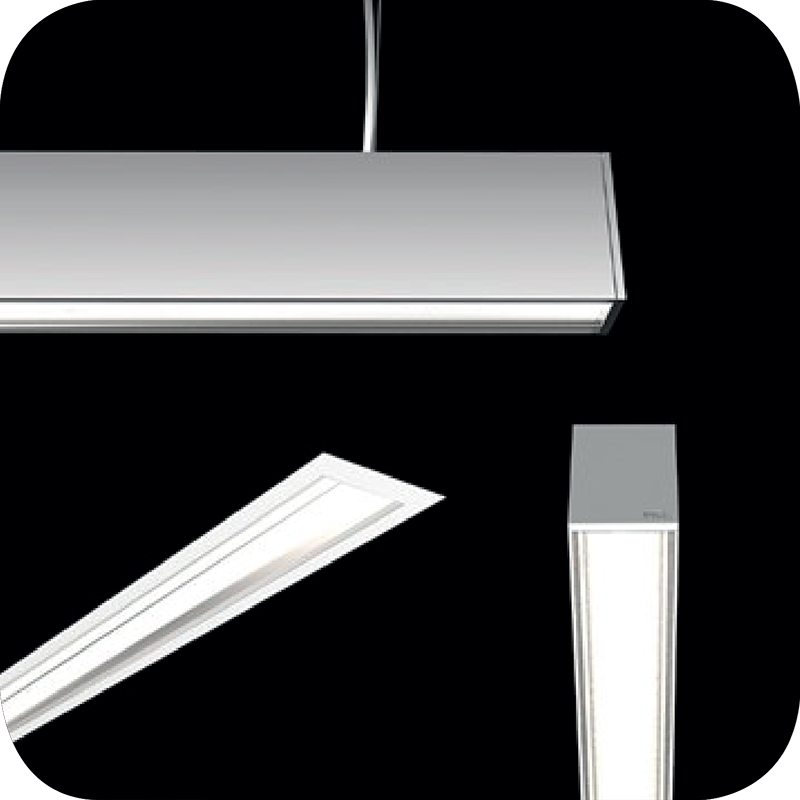

L6 Linear Lenses

The L6 (formerly U060) linear lenses offer outstanding performance and flexibility for a multitude of linear lighting applications. With multiple lumen packages and five (5) different optics to choose from, this fixture is a powerful tool for any designer.

Specifications

  • Width 2.4” (60mm)
  • Standard Nominal Lengths: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations (including vertical runs and corners) available upon request.
  • Mounting: Recessed Trimless - Recessed with Trim - Recessed Millwork - Surface Mount - Pendant - Wall mount
  • Delivered Luminous Output: 500 - 1500 lumens per foot.
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K - Tunable White (2200K-5000K) and Dim to Warm (2700K-1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: Opal/Lambertian - Diamond Prismatic - Narrow Elliptical – Asymmetric - Batwing
  • Standard Finishes: Black – White – Grey - Custom RAL
  • Dimming Protocol: 0-10V – ELV – DALI - DMX
L6 Linear Lenses
L6 Linear Lenses
$standardalt$

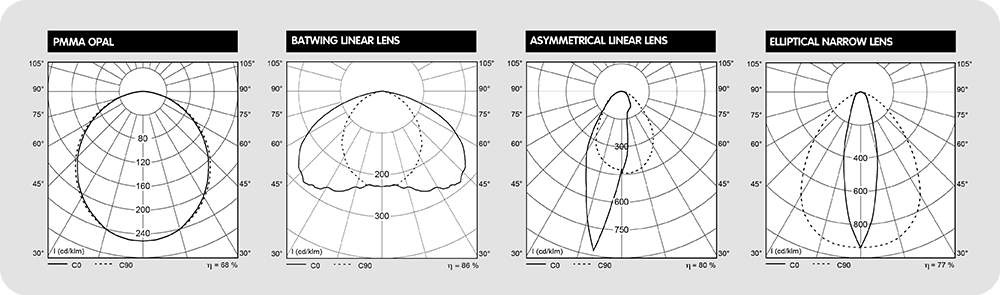

Photometric data: Type C Polar Curves
L6 Linear Lenses
