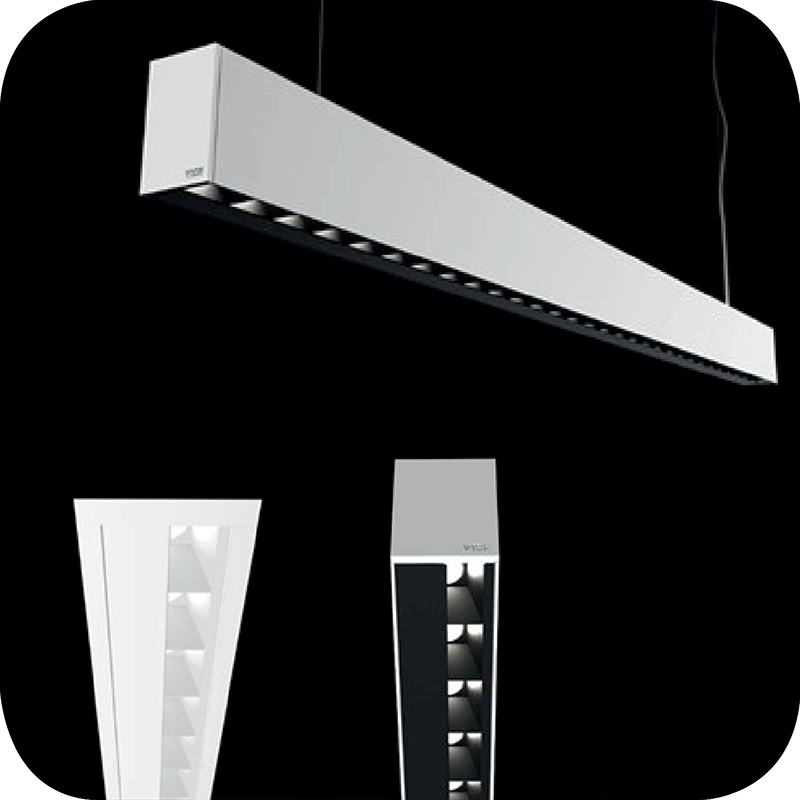

L6 Grazing Baffles

The L6 (formerly U060) Baffled Wallgrazer offers best-in-class grazing capabilities with illumination starting at the zero point of the wall plane. The luminaire's anti-glare optics were designed to provide exceptional glare control from both the longitudinal and transversal views while offering superior illumination of textured surfaces.

Specifications

  • Width 2.4” (60mm)
  • Standard Nominal Lengths: 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Mounting: Recessed Trimless - Recessed with Trim - Recessed Millwork - Surface Mount - Pendant - Wall mount
  • Delivered Luminous Output: 400 - 750 lumens per foot
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Dim to Warm (3000K – 1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distributions: Ultra-Narrow 8° - Narrow 16°
  • Standard Finishes: Black – White – Grey - Custom RAL
  • Dimming Protocols: 0-10V - ELV - DALI - DMX
L6 Grazing Baffles
L6 Grazing Baffles
$standardalt$

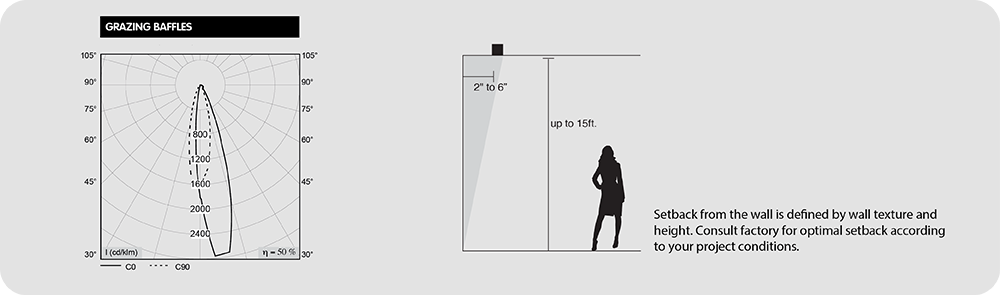

Photometric data: Type C Polar Curves
L6 Grazing Baffles

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
