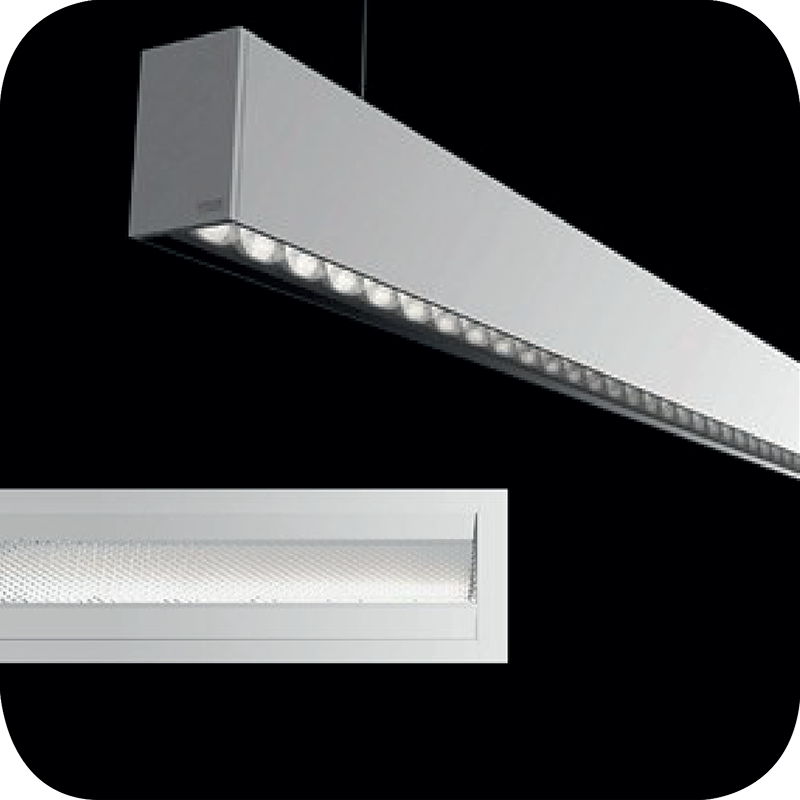

L6 Cut Off Washer

The L6 (formerly U060), full cut-off washer offers a flawless surface uniformity while blocking the backward and longitudinal light spill. This luminaire is completely glare-free, making it a unicorn amongst horses! Designed to be highly configurable in output and lengths, it is perfect for both standard and highly complex applications. Its optics are designed to provide flawless LED color mixing when used with Tunable White or Dim-to-Warm.


  • Width 2.4” (60mm)
  • Standard Nominal Lengths – 12” - 24” - 36” - 48” - 60” with continuous runs and custom configurations available
  • Mounting: Recessed Trimless - Recessed with Trim - Recessed Millwork - Surface Mount - Pendant - Wall mount
  • Delivered Luminous Output: 600 - 1100 lumens per foot
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K – 4000K – Tunable White (2700K-5000K) – Dim to Warm (2700K-1800K)
  • Standard CRI +80 and High CRI +90
  • Light Distribution: Full Cut-Off wallwasher
  • Standard Finishes: Black, White, Grey, and Custom RAL
  • Dimming Protocols: 0-10V, ELV, DALI, and DMX
L6 Cut Off Washer

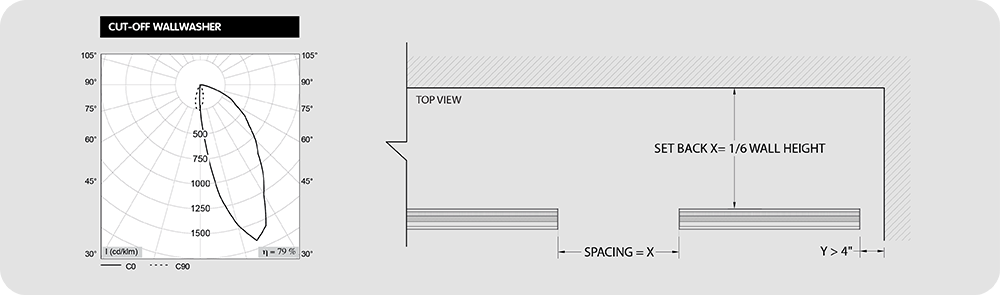

Photometric data: Type C Polar Curves
L6 Cut Off Washer


Maximum allowed voltage drop is 3V
