Stealth

Recessed with Trim

The Billet family has been extended to cover pathway lighting applications. The Billet family of luminaries achieves consistency throughout indoor and outdoor spaces, while maintaining the same optical performance, light consistency, and overall aesthetics for stairs, corridors, and pathways.

The Billet Stealth Step-light Recessed with Trim was designed to provide lateral and forward throw from a completely concealed light source for minimal glare. Our Billet family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Delivered Luminous Output: 325 - 1240 lumens per foot
  • Optics: Stealth or Stealth with louvers
  • Mounting: Wall Recessed
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K)1
  • High CRI +90
  • Dimming Protocol: 0-10V - ELV - DALI - DMX - Lutron Hi-Lume
  • Standard Finishes: Black - Grey - White - Custom RAL colors

  • 1 Custom CCT ranges available upon request
Stealth
$standardalt$

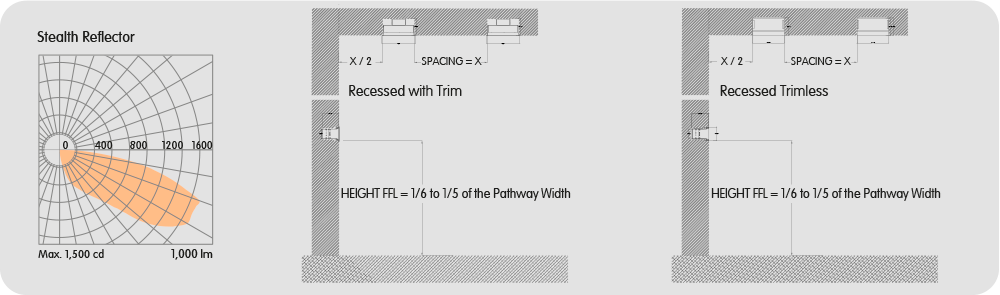

Photometric data: Type C Polar Curves
Stealth

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
