Pathway

Recessed with Trim

The Billet family has been extended to cover pathway lighting applications. The Billet family of luminaries achieves consistency throughout indoor and outdoor spaces, while maintaining the same optical performance, light consistency, and overall aesthetics for stairs, corridors, and pathways.

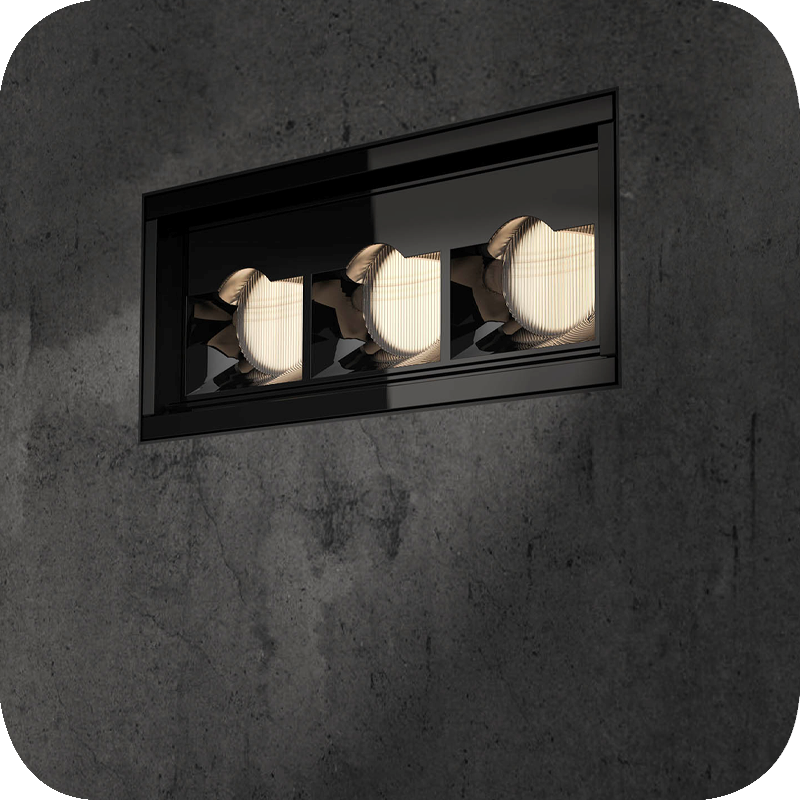

The Billet Baffles Step-light Recessed with Trim is developed with the same optical engineering as the Billet Wallwasher to provide a long throw, clean side cut off, and powerful surface wash. Our Billet family complies with the Build America, Buy America (BABA) requirements.

Specifications

  • Delivered Luminous Output: 325 - 1240 lumens per foot
  • Optics: Pathway
  • Mounting: Wall Recessed
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K - 4000K - Tunable White (2700K-5000K)1 - Dim to Warm (1800K-3000K)1
  • High CRI +90
  • Dimming Protocol: 0-10V - ELV - DALI - DMX - Lutron Hi-Lume
  • Standard Finishes: Black - Grey - White - Custom RAL colors

    • 1 Custom CCT ranges available upon request
Pathway
Pathway
$standardalt$

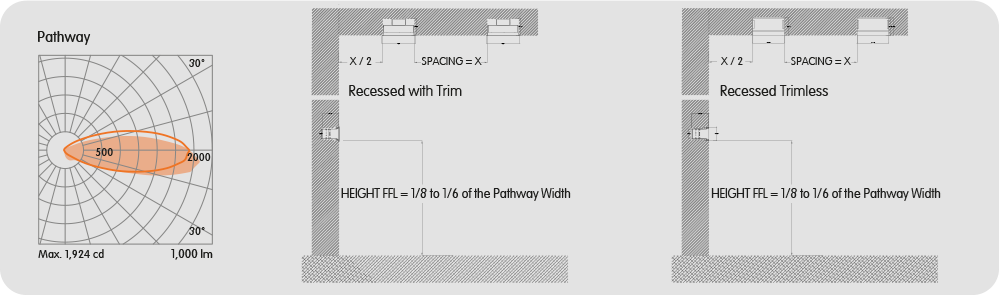

Photometric data: Type C Polar Curves
Pathway

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V

Calculate
