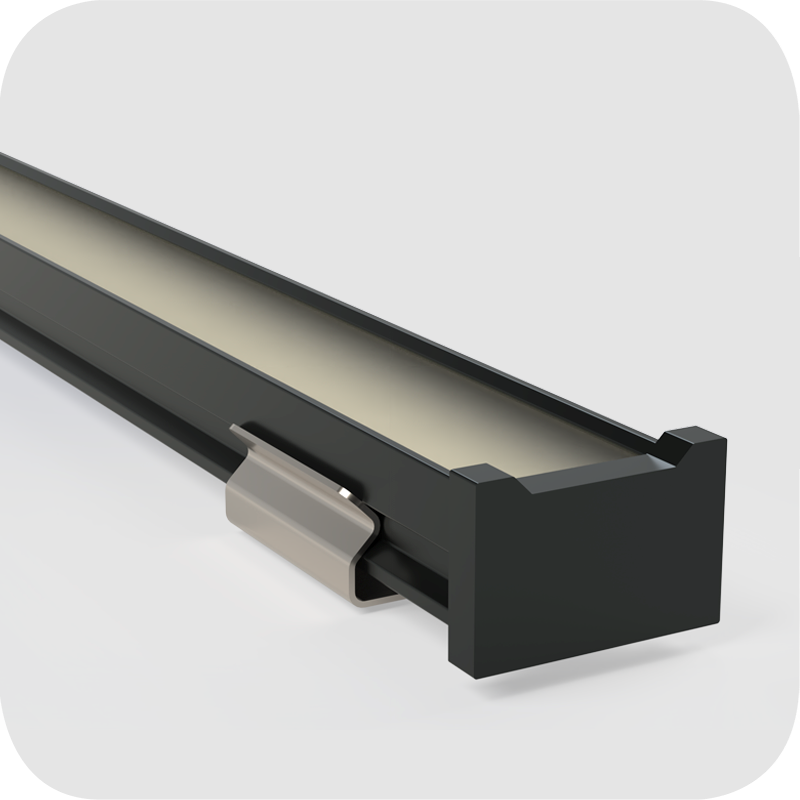

Span-E2-F

Surface Mounted

Combining functionality with a minimalist form factor, this linear fixture seamlessly integrates into its environment. Designed with lighting designers in mind, Span provides the flexibility to accentuate architectural details and illuminate vertical surfaces. Its high-performance Linear LED luminaires are ideal for wall washing, wall grazing, or floodlighting exterior walls and facades, delivering exceptional uniformity and precision.
Span features a rotating adjustable bracket for precise aiming and enhanced versatility adapting effortlessly to a wide range of applications.

Specifications

  • Delivered Luminous Output: 150 lumens per foot
  • Light Distributions: Elliptical (20°x70°) Lambertian
  • Available Color Temperatures (CCT): 2700K – 3000K – 3500K
  • Color Rendering Index: Ra90
  • Dimming Protocol: 0-10V / DALI / ELV / DMX
  • Color deviation: 3 MacAdam ellipses
  • 5-year limited warranty
Span-E2-F
$standardalt$

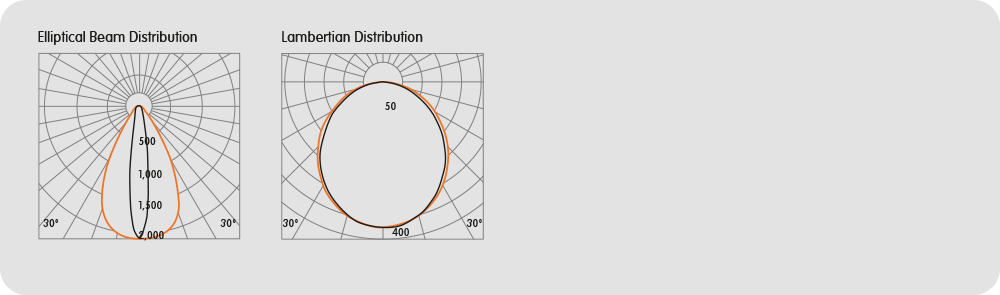

Photometric data: Type C Polar Curves
Span-E2-F

VOLTAGE DROP CALCULATOR FOR SPECTER TRACK

Maximum allowed voltage drop is 3V
